Example 6: yFiles

This example demonstrates how the NetworkX-Graph created by PT3S can be used with yFiles.

PT3S Release

#pip install PT3S -U --no-deps

Necessary packages for this Example

When running this example for the first time on your machine, please execute the cell below. Afterward, you may need to restart the kernel (using the ‘fast-forward’ button).

pip install -q ipywidgets bokeh ipython

Note: you may need to restart the kernel to use updated packages.

Imports

import os
import geopandas
from geopandas import GeoSeries
import logging
import pandas as pd
import io

import subprocess

import matplotlib.pyplot as plt

import matplotlib
import matplotlib.colors as mcolors

import folium
from folium.plugins import HeatMap

from IPython.display import Image

import networkx as nx

import typing
from yfiles_jupyter_graphs import GraphWidget

try:
    from PT3S import dxAndMxHelperFcts
except:
    import dxAndMxHelperFcts

try:
    from PT3S import Mx
except:
    import Mx

try:
    from PT3S import Rm
except:
    import Rm

import importlib
from importlib import resources

Logging

logger = logging.getLogger()

if not logger.handlers:
    logFileName = r"Example6.log"
    loglevel = logging.DEBUG

    logging.basicConfig(
        filename=logFileName,
        filemode='w',
        level=loglevel,
        format="%(asctime)s ; %(name)-60s ; %(levelname)-7s ; %(message)s"
    )

    fileHandler = logging.FileHandler(logFileName)
    logger.addHandler(fileHandler)

    consoleHandler = logging.StreamHandler()
    consoleHandler.setFormatter(logging.Formatter("%(levelname)-7s ; %(message)s"))
    consoleHandler.setLevel(logging.INFO)
    logger.addHandler(consoleHandler)

Read Model and Results

dbFilename="Example6"
dbFile = resources.files("PT3S").joinpath("Examples", f"{dbFilename}.db3")

m=dxAndMxHelperFcts.readDxAndMx(dbFile=dbFile,preventPklDump=True,maxRecords=0)

INFO    ; Dx.__init__: dbFile (abspath): c:\users\aUserName\3s\pt3s\Examples\Example6.db3 exists readable ...
INFO    ; Dx.__init__: dbFile (abspath): c:\users\aUserName\3s\pt3s\Examples\Example6.db3 exists readable ...

Network Graph m.G

GNet: only the Net, only the Supply layer

netNodes=[n for (n,data) in m.G.nodes(data=True) if
    data['KVR'] in [1,'1'] # nur der VL
and data['ID_CONT']==data['IDPARENT_CONT'] # nur das Netz
]

GNet=m.G.subgraph(netNodes)

examine GNet with nx

nx.number_connected_components(GNet)

1

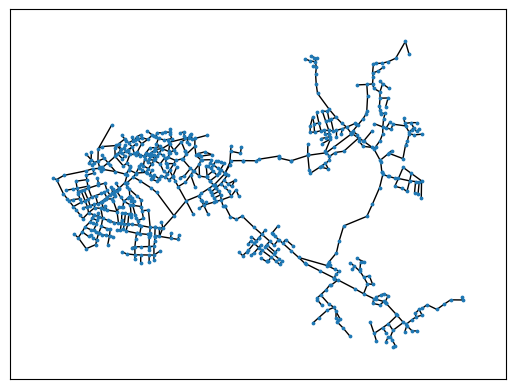

nx.draw_networkx(GNet,with_labels = False,node_size=3,pos=m.nodeposDctNx)

examine max. disconnected Subgraph

Separating valves are defined in the network. If necessary, separating valves can divide the network into individual areas, e.g. for isolating areas with large leaks. All separating valves are defined in the model as follows: They are located in the “TS” block.

def falseIfSeparatingValveTrueElse(n1, n2):
    if GNet[n1][n2]['NAME_CONT']=='TS' and GNet[n1][n2]['OBJTYPE']=='VENT':
        return False
    else:
        return True

Ghk=nx.subgraph_view(GNet,filter_edge=falseIfSeparatingValveTrueElse)

nx.number_connected_components(Ghk)

25

examine Subgraph in terms of raw data

gNetNodeTks=[data['tk'] for n, data in GNet.nodes(data=True)]

dfNodes=m.V3_KNOT
dfNodes=dfNodes[(dfNodes['tk'].isin(gNetNodeTks))]
dfNodes.shape[0],len(GNet.nodes)

(773, 773)

dfEdges=m.V3_VBEL.reset_index()
dfEdges=dfEdges[(dfEdges['fkKI'].isin(gNetNodeTks))  &
             (dfEdges['fkKK'].isin(gNetNodeTks))
]
dfEdges.shape[0],len(GNet.edges)

(891, 891)

Subgraph as yFiles

w=GraphWidget(graph=GNet)

set node grouping

construct group nodes (not used)

pzon_nodes = [
    {"id": int(pzon)
    , "properties": {"label": pzon
    , 'NAME_PZON': pzon
    ,'NAME_CONT_VKNO': None
    ,'NAME': pzon
    }
    , "coordinates": [m.gdf_KNOT[m.gdf_KNOT['NAME_PZON']==pzon].to_crs('EPSG:4326').dissolve().centroid.geometry.iloc[0].centroid.y
                     ,m.gdf_KNOT[m.gdf_KNOT['NAME_PZON']==pzon].to_crs('EPSG:4326').dissolve().centroid.geometry.iloc[0].centroid.x]
    }
    for pzon in sorted(dfNodes['NAME_PZON'].unique())
]

let yFiles contruct the group nodes

yFiles requests for grouping so called group nodes; if w.node_parent_group_mapping is used instead of w.node_parent_mapping yFiles constructs group nodes implicitely

w.get_node_parent_group_mapping()

<function yfiles_jupyter_graphs.widget.GraphWidget.default_node_parent_group_mapping(index: int, node: Dict)>

def my_node_coordinates(node: typing.Dict):



    geom=GeoSeries.from_wkb([node['properties']['GEOMWKB']],crs='EPSG:25832').to_crs('EPSG:4326').geometry.iloc[0]
    lon=geom.centroid.x
    lat=geom.centroid.y
    return(lat,lon)

my_node_coordinates(w.nodes[0])

(0.8870190478911403, 4.999389740851918)

def my_node_parent_group_mapping(node: typing.Dict):

    return {
        'label':node['properties']['NAME_PZON']
        ,"coordinates": [my_node_coordinates(node)[0],my_node_coordinates(node)[1]]


       # [m.gdf_KNOT[m.gdf_KNOT['NAME_PZON']==node['properties']['NAME_PZON']].to_crs('EPSG:4326').dissolve().centroid.geometry.iloc[0].centroid.y
        #             ,m.gdf_KNOT[m.gdf_KNOT['NAME_PZON']==node['properties']['NAME_PZON']].to_crs('EPSG:4326').dissolve().centroid.geometry.iloc[0].centroid.x]



        #[my_node_coordinates(node)[0],my_node_coordinates(node)[1]]
    }

my_node_parent_group_mapping(w.nodes[0])

{'label': '22', 'coordinates': [0.8870190478911403, 4.999389740851918]}

w.set_node_parent_group_mapping(my_node_parent_group_mapping)

#w.node_parent_group_mapping = "NAME_PZON"

set node coordinate mapping

w.get_node_coordinate_mapping()

<function yfiles_jupyter_graphs.widget.GraphWidget.default_node_coordinate_mapping(index: int, node: Dict)>

def my_node_coordinate_mapping(node: typing.Dict):

    if 'GEOMWKB' in node['properties'].keys():

        #geom=GeoSeries.from_wkb([node['properties']['GEOMWKB']],crs='EPSG:25832').to_crs('EPSG:4326').geometry.iloc[0]
        #lon=geom.centroid.x
        #lat=geom.centroid.y
        #return(lat,lon)

        return my_node_coordinates(node)

    elif "coordinates" in node.keys():
        return node['coordinates']

    elif "coordinates" in node['properties'].keys():
        return (node['properties']['coordinates'][0],node['properties']['coordinates'][1])

    else:
        print('ERROR in my_node_coordinate_mapping.')
        #return(0,0)

node=w.nodes[0]
#sorted(node['properties'])#['GEOMWKB']

my_node_coordinate_mapping(node)

(0.8870190478911403, 4.999389740851918)

w.set_node_coordinate_mapping(my_node_coordinate_mapping)

set edge thickness mapping

w.get_edge_thickness_factor_mapping()

<function yfiles_jupyter_graphs.widget.GraphWidget.default_edge_thickness_factor_mapping(index: int, edge: Dict)>

DImin=dfEdges['DI'].min()
DImax=dfEdges['DI'].max()
norm = plt.Normalize(vmin=DImin, vmax=DImax)

line_width_factor=10
line_width_min=1

def my_edge_thickness_factor_mapping(edge: typing.Dict):
    """DI as thickness"""
    if edge['properties']['OBJTYPE']=='VENT':
        return max(line_width_min,norm(DImax)*line_width_factor) # VENTs (Valves) with max. ROHR-(Pipe-)Thickness
    else:
        if 'DI' in edge['properties'].keys():
            if isinstance(edge['properties']['DI'],float):
                return max(line_width_min,norm(edge['properties']['DI'])*line_width_factor)
        else:
            return line_width_min

edge=w.edges[0]
#sorted(edge['properties'])

my_edge_thickness_factor_mapping(edge)

2.243620578701126

w.set_edge_thickness_factor_mapping(my_edge_thickness_factor_mapping)

set edge color mapping

w.get_edge_color_mapping()

<bound method GraphWidget.default_edge_color_mapping of GraphWidget(layout=Layout(height='500px', width='100%'))>

colors=['lightgrey', 'dimgrey']
cmap = mcolors.LinearSegmentedColormap.from_list('cmap', colors, N=256)

cMin=matplotlib.colors.to_rgb(cmap(norm(DImin)))

def my_edge_color_mapping(edge: typing.Dict):
    """DI as color"""
    if edge['properties']['OBJTYPE']=='VENT':
        return matplotlib.colors.to_hex('red')#"#0096C7" #matplotlib.colors.to_rgb('red') .to_hex(c
    else:
        if 'DI' in edge['properties'].keys():
            if isinstance(edge['properties']['DI'],float):
                return matplotlib.colors.to_hex(cmap(norm(edge['properties']['DI'])))
        else:
            return cMin

my_edge_color_mapping(edge)

'#bbbbbb'

matplotlib.colors.to_rgb('red')

(1.0, 0.0, 0.0)

cMin

(0.8274509803921568, 0.8274509803921568, 0.8274509803921568)

w.set_edge_color_mapping(my_edge_color_mapping)

set node size mapping

w.get_node_size_mapping()

<function yfiles_jupyter_graphs.widget.GraphWidget.default_node_size_mapping(index: int, node: Dict)>

def my_node_size_mapping(node: typing.Dict):
    """Select a width and height for the node"""

    width_default=55
    height_default=55

    if 'NAME_CONT_VKNO' not in node['properties'].keys(): # yFiles' implicit created nodes ...
        return width_default/10.,height_default/10.

    if not pd.isnull(node['properties']['NAME_CONT_VKNO']):
        if node['properties']['NAME_CONT_VKNO'] in ['H','R']:
            return  width_default*2,height_default*2
        else:
            return  width_default,height_default
    else:
        return width_default/10.,height_default/10.

#sorted(node['properties'])

w.set_node_size_mapping(my_node_size_mapping)

set node label mapping

w.get_node_label_mapping()

<bound method GraphWidget.default_node_label_mapping of GraphWidget(layout=Layout(height='500px', width='100%'))>

def my_node_label_mapping(node: typing.Dict):
    """"""
    if 'NAME' in node['properties'].keys(): # yFiles' implicit created nodes ...
        dct= {'text':node['properties']['NAME']}
    elif 'label' in node['properties'].keys():
        dct= {'text':node['properties']['label']}

    if 'NAME_CONT_VKNO' not in node['properties'].keys(): # yFiles' implicit created nodes ...
        return dct

    if not pd.isnull(node['properties']['NAME_CONT_VKNO']):
        if node['properties']['NAME_CONT_VKNO'] in (['H','R']):
            pass
            #dct['backgroundColor']=matplotlib.colors.to_hex('red')


    return dct

w.set_node_label_mapping(my_node_label_mapping)

set node style mapping

w.get_node_styles_mapping()

<function yfiles_jupyter_graphs.widget.GraphWidget.default_node_styles_mapping(index: int, node: Dict)>

def my_node_styles_mapping(node: typing.Dict):
    """"""
    if 'NAME' in node['properties'].keys(): # yFiles' implicit created nodes ...
        dct= {}
    elif 'label' in node['properties'].keys():
        dct= {}

    if 'NAME_CONT_VKNO' not in node['properties'].keys(): # yFiles' implicit created nodes ...
        return {}

    if not pd.isnull(node['properties']['NAME_CONT_VKNO']):
        if node['properties']['NAME_CONT_VKNO'] in (['H','R']):
            pass
            dct['color']=matplotlib.colors.to_hex('blue')
            if node['properties']['NAME_CONT_VKNO']=='R':
                dct['shape']='octagon'
            elif node['properties']['NAME_CONT_VKNO']=='H':
                dct['shape']='hexagon'


    return dct

w.set_node_styles_mapping(my_node_styles_mapping)

#dir(node)

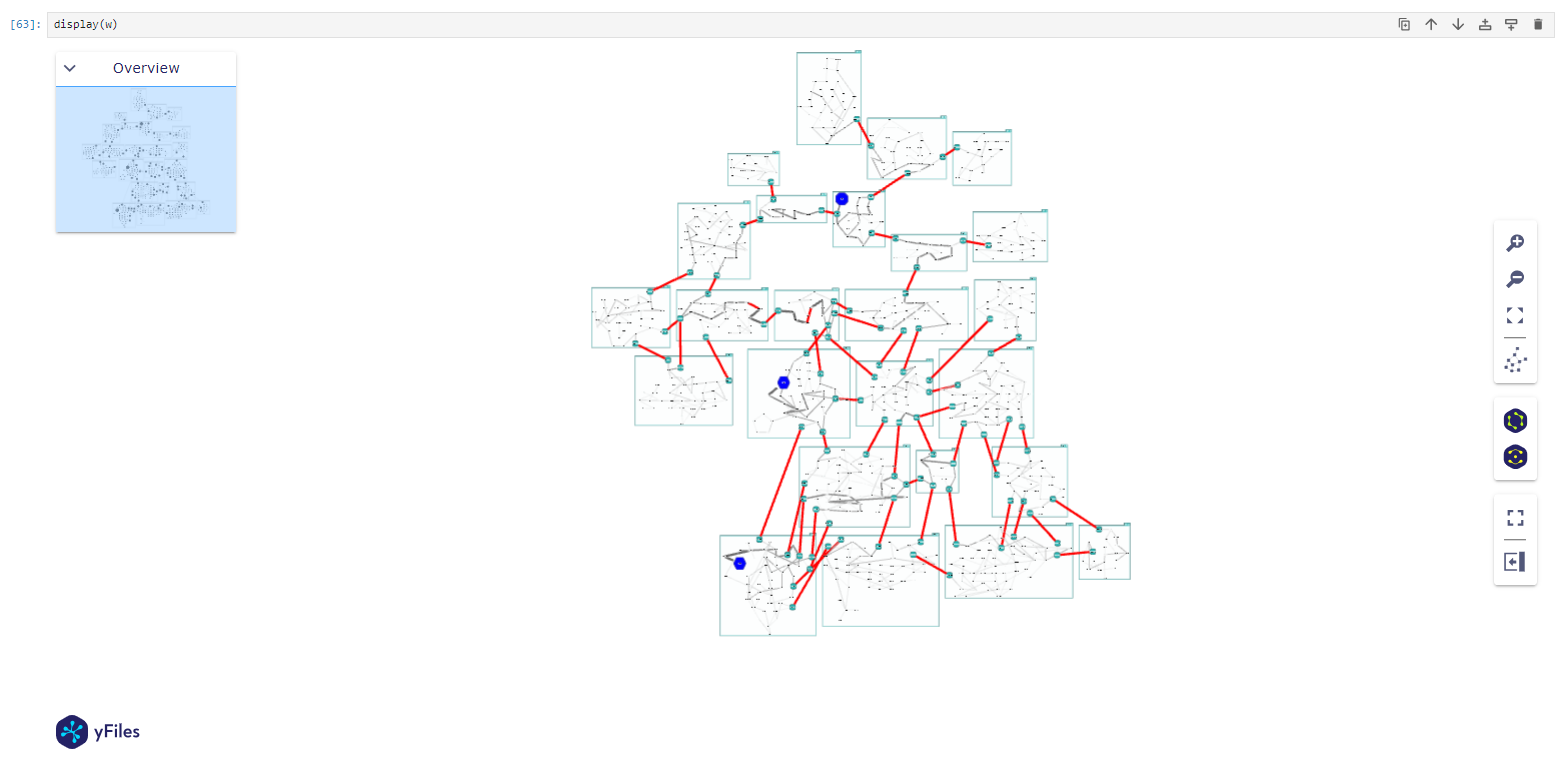

show graph

display(w)

The depiction of the graph does not work in the documentation, because a python kernel must run it. A screenshot of the graph is provided below. To interact with the graph, download and run the script.

try:
    image = Image(filename=os.path.dirname(os.path.abspath(dxAndMxHelperFcts.__file__))+r"\Examples\Images\3_example6_yfilesgraph.png")
    display(image)
except:
    print('png not displayed')

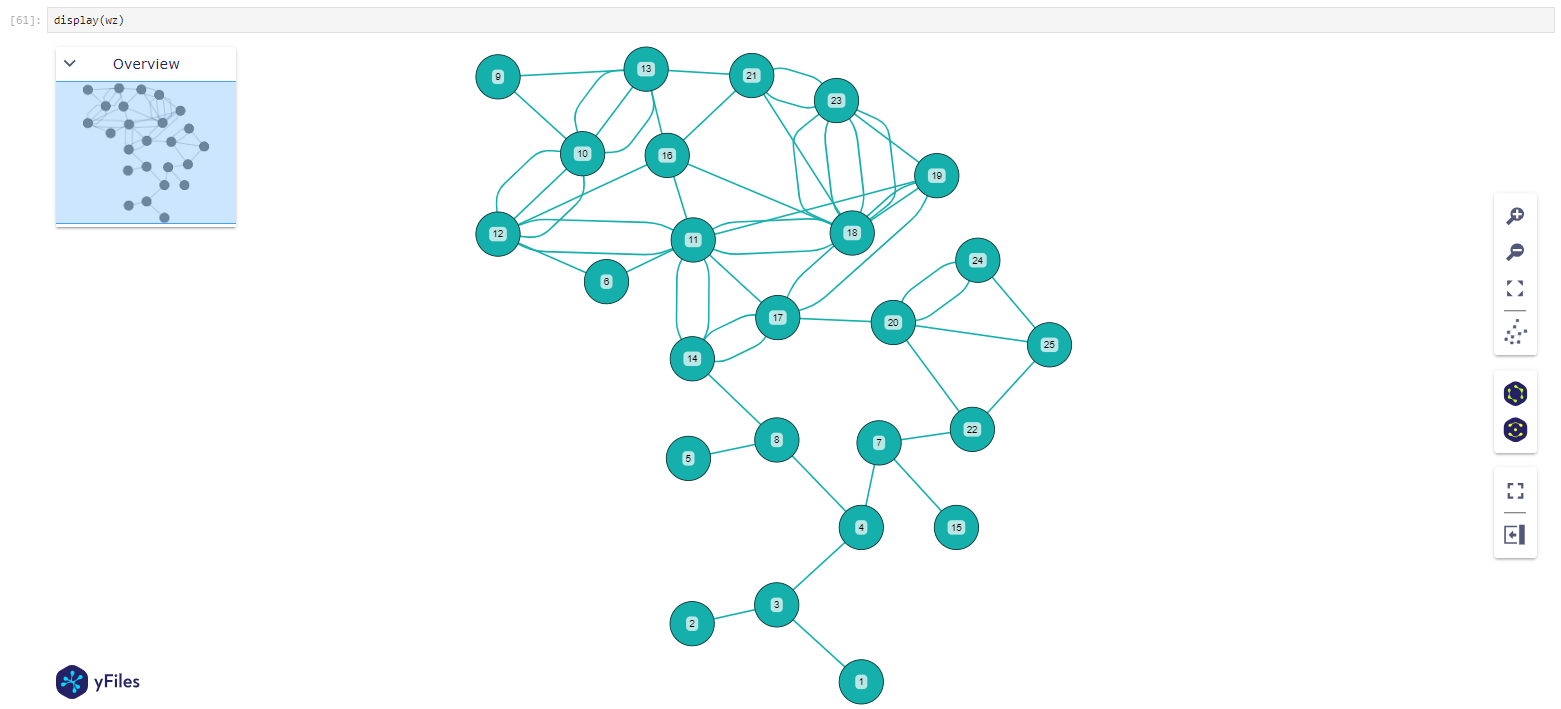

corresponding Graph with groups as nodes

zone_nodes = [
    {"id": int(pzon)
    , "properties": {"label": pzon
    , 'NAME_PZON': pzon
   # ,'NAME_CONT_VKNO': None
   # ,'NAME': pzon
    }
    , "coordinates": [m.gdf_KNOT[m.gdf_KNOT['NAME_PZON']==pzon].to_crs('EPSG:4326').dissolve().centroid.geometry.iloc[0].centroid.y
                     ,m.gdf_KNOT[m.gdf_KNOT['NAME_PZON']==pzon].to_crs('EPSG:4326').dissolve().centroid.geometry.iloc[0].centroid.x]
    }
    for pzon in sorted(dfNodes['NAME_PZON'].unique())
]

#pzon_nodes

df_zone_edges=dfEdges[(dfEdges['OBJTYPE'].isin(['VENT']))
           &
             (dfEdges['ID_CONT']!=dfEdges['IDPARENT_CONT'])
]

zone_edges = [
    {"start": dfNodes[dfNodes['NAME']==row['NAME_i']].iloc[0]['NAME_PZON']
    , "end": dfNodes[dfNodes['NAME']==row['NAME_k']].iloc[0]['NAME_PZON']
    , "label": ""
    , "properties": {}
    , "directed": False}
    for index, row in df_zone_edges.iterrows()
]

wz = GraphWidget()

wz.edges = zone_edges
wz.nodes = zone_nodes

wz.set_node_coordinate_mapping="coordinates"

display(wz)

The depiction of the graph does not work in the documentation, because a python kernel must run it. A screenshot of the graph is provided below. To interact with the graph, download and run the script.

try:
    image = Image(filename=os.path.dirname(os.path.abspath(dxAndMxHelperFcts.__file__))+r"\Examples\Images\4_example6_yfilesgraph.png")
    display(image)
except:
    print('png not displayed')
