Example 7: Source Spectrum

This example demonstrates how GeoDataFrames (gdfs) and V3_dataframe created by PT3S can be used with matplotlib to create an interactive depiction of a source spectrum.

PT3S Release

#pip install PT3S -U --no-deps

Necessary packages for this Example

When running this example for the first time on your machine, please execute the cell below. Afterward, you may need to restart the kernel (using the ‘fast-forward’ button).

!pip install -q shapely ipywidgets

Imports

import os
import logging
import pandas as pd
from pandas import Timestamp
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import geopandas as gpd
from shapely.geometry import LineString, Point
from matplotlib.patches import Circle
import ipywidgets as widgets

#...

try:
    from PT3S import dxAndMxHelperFcts
except:
    import dxAndMxHelperFcts

try:
    from PT3S import Rm
except:
    import Rm

try:
    from PT3S import ncd
except:
    import ncd
#...

import importlib
from importlib import resources

#importlib.reload(ncd)

Logging

logger = logging.getLogger()

if not logger.handlers:
    logFileName = r"Example7.log"
    loglevel = logging.DEBUG

    logging.basicConfig(
        filename=logFileName,
        filemode='w',
        level=loglevel,
        format="%(asctime)s ; %(name)-60s ; %(levelname)-7s ; %(message)s"
    )

    fileHandler = logging.FileHandler(logFileName)
    logger.addHandler(fileHandler)

    consoleHandler = logging.StreamHandler()
    consoleHandler.setFormatter(logging.Formatter("%(levelname)-7s ; %(message)s"))
    consoleHandler.setLevel(logging.INFO)
    logger.addHandler(consoleHandler)

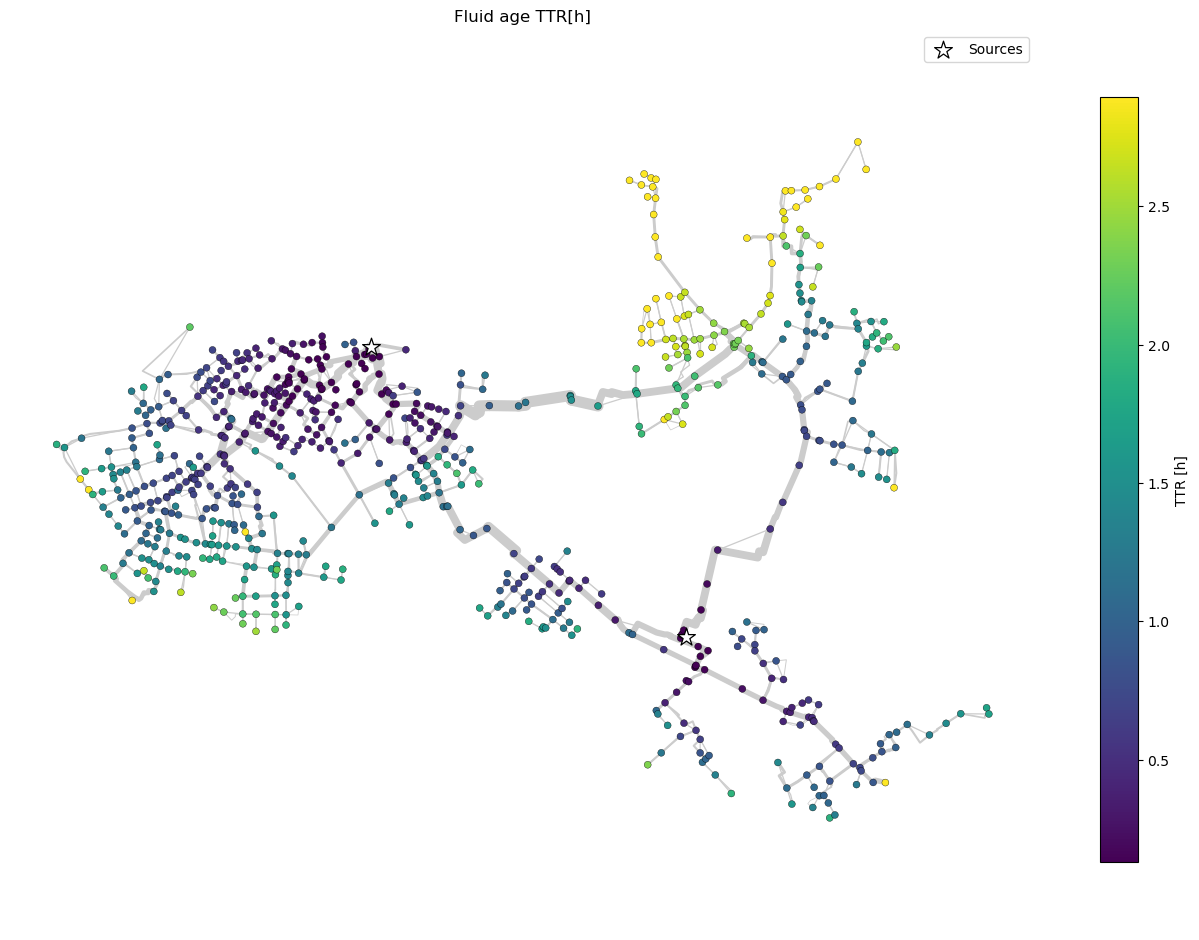

Read Model and Results

dbFilename="Example5"
dbFile = resources.files("PT3S").joinpath("Examples", f"{dbFilename}.db3")

m=dxAndMxHelperFcts.readDxAndMx(dbFile=dbFile
                                ,preventPklDump=True
                                ,maxRecords=-1
                                #,SirCalcExePath=r"C:\3S\SIR 3S\SirCalc-90-14-02-10_Potsdam\SirCalc.exe"
                                )

INFO    ; Dx.__init__: dbFile (abspath): c:\users\aUserName\3s\pt3s\PT3S\Examples\Example5.db3 exists readable ...
INFO    ; PT3S.dxAndMxHelperFcts.readDxAndMx: Model is being recalculated using C:\3S\SIR 3S\SirCalc-90-14-02-10_Potsdam\SirCalc.exe
INFO    ; Mx.setResultsToMxsFile: Mxs: ..\PT3S\Examples\WDExample5\B1\V0\BZ1\M-1-0-1.1.MXS reading ...
INFO    ; dxWithMx.__init__: Example5: processing dx and mx ...

Preparing Data

dfKNOT=m.V3_KNOT

dfROHR=m.gdf_ROHR

# Get soure signatures for start and end knot
dfROHR['srcvector_fkKI'] = dfROHR['fkKI'].map(dfKNOT.set_index('tk')['srcvector'])
dfROHR['srcvector_fkKK'] = dfROHR['fkKK'].map(dfKNOT.set_index('tk')['srcvector'])

QM=('STAT',
  'ROHR~*~*~*~QMAV',
  Timestamp('2024-01-09 23:00:00'),
  Timestamp('2024-01-09 23:00:00'))

dfROHR['srcvector_plot'] = np.where(dfROHR[QM] > 0, dfROHR['srcvector_fkKI'], dfROHR['srcvector_fkKK'])

dfROHR = dfROHR[dfROHR['KVR'] != 2.0]

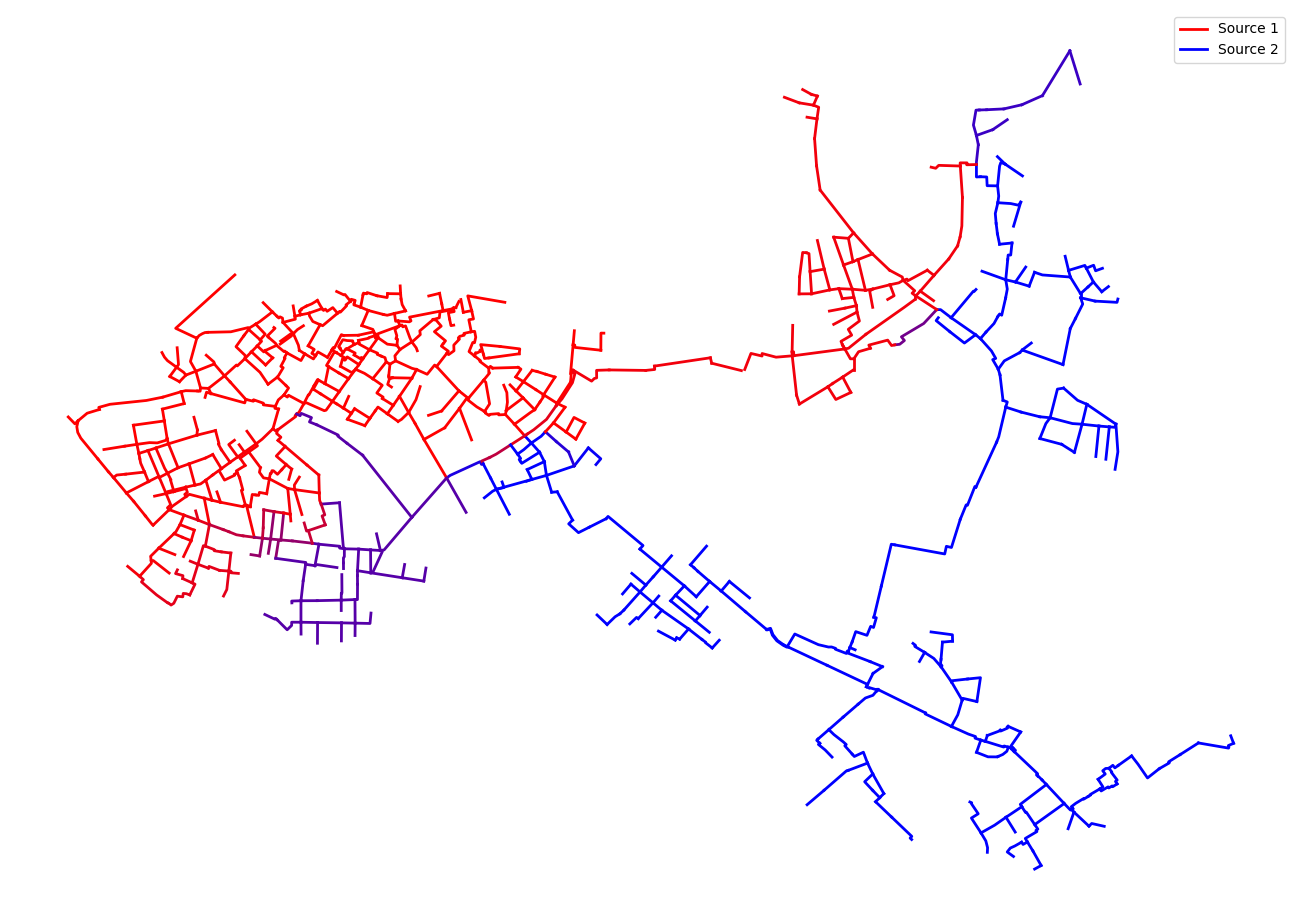

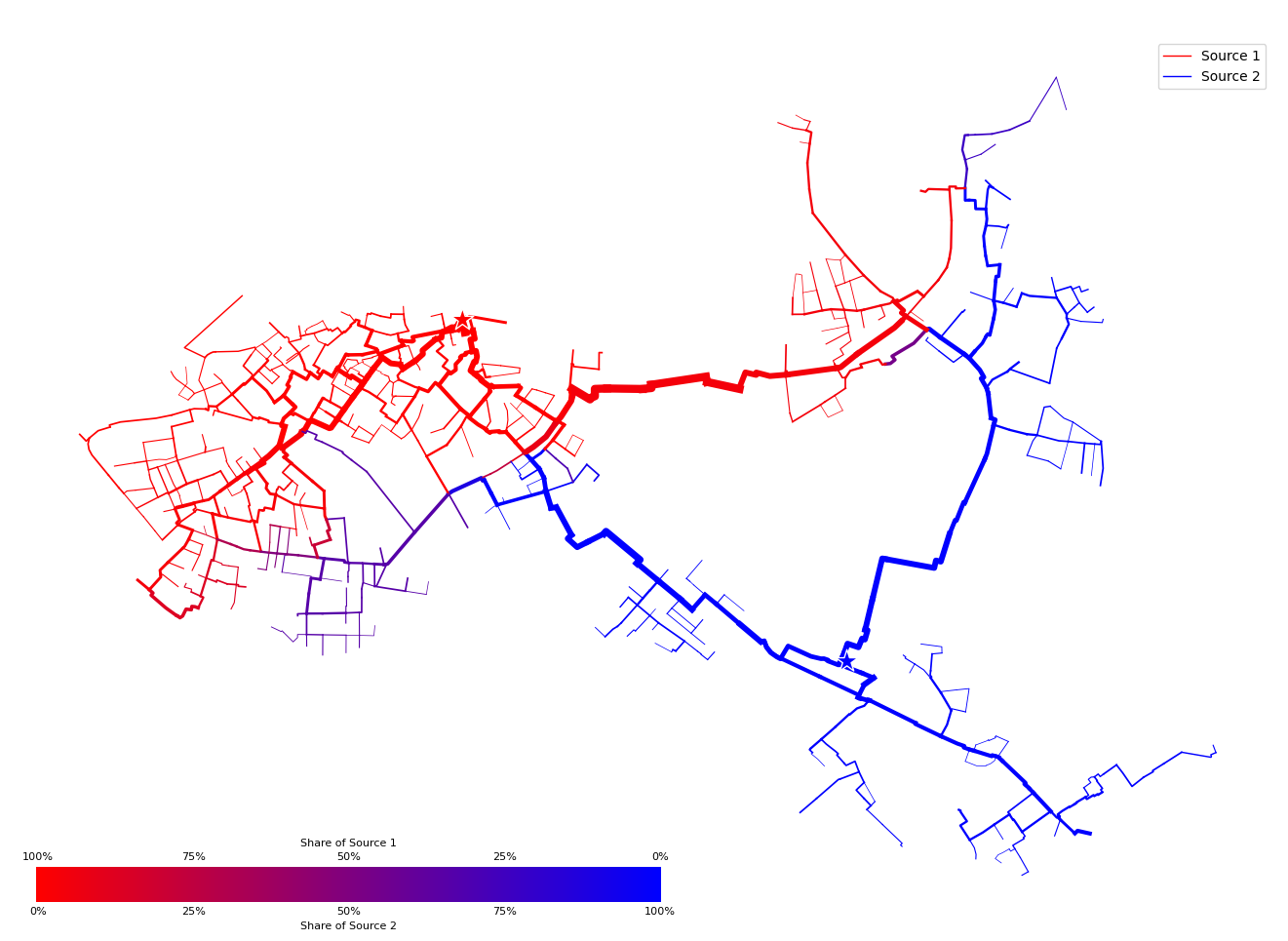

Plotting

colors = [np.array([255, 0, 0]), np.array([0, 0, 255])]

fig, ax = plt.subplots(figsize=Rm.DINA3q)
ncd.plot_src_spectrum(ax, dfROHR,'srcvector_plot', colors)
plt.show()

xlim = ax.get_xlim()
ylim = ax.get_ylim()
canvas_center = ((xlim[0] + xlim[1]) / 2, (ylim[0] + ylim[1]) / 2)

fig.savefig('Example7_Output_1.pdf')

Plot with Pie Charts

Prepara Data

dfROHR['srcvector_plot'] = dfROHR['srcvector_plot'].apply(lambda x: tuple(x) if isinstance(x, list) else x)

unique_values = dfROHR['srcvector_plot'].unique()

df = pd.DataFrame({
    'srcvector_plot': unique_values,
    'geometry': [dfROHR[dfROHR['srcvector_plot'] == value]['geometry'].iloc[0] for value in unique_values]
})

df[['left', 'right']] = pd.DataFrame(df['srcvector_plot'].tolist(), index=df.index)

df['left'] = df['left'].astype(int)
df['right'] = df['right'].astype(int)

df['pos'] = df['geometry'].apply(lambda geom: geom.interpolate(0.5) if isinstance(geom, LineString) else None)

def create_offset_point_away_from_midpoint(midpoint, canvas_center, scale=0.5):
    if midpoint is not None:
        # Calculate the direction vector from the canvas center to the midpoint
        direction_vector = Point(midpoint.x - canvas_center[0], midpoint.y - canvas_center[1])

        # Normalize the direction vector
        magnitude = (direction_vector.x**2 + direction_vector.y**2)**0.5
        normalized_vector = Point(direction_vector.x / magnitude, direction_vector.y / magnitude)

        # Create a point away from the midpoint in the direction away from the canvas center
        offset_point = Point(midpoint.x + normalized_vector.x * scale, midpoint.y + normalized_vector.y * scale)

        return offset_point
    return None

df['offset_point'] = df['pos'].apply(lambda pos: create_offset_point_away_from_midpoint(pos, canvas_center, scale=3000))

def create_circle_around_offset_point(offset_point, radius=1000):
    if offset_point is not None:
        return Point(offset_point.x, offset_point.y).buffer(radius)
    return None

df['circle'] = df['offset_point'].apply(lambda offset_point: create_circle_around_offset_point(offset_point, radius=1000))

#df.head()

df['helper_line'] = df.apply(lambda row: LineString([row['pos'], row['offset_point'].representative_point()]) if row['offset_point'] is not None else None, axis=1)

df = df.sort_values(by='left', ascending=True)

colors2=['red','blue']

Plotting Functions

Version 1 interactive

def plot_pie_charts_v1(ax, indexes, size=0.3, font_size=10, alpha=0.5):
    for index in indexes:
        if index < 0 or index >= len(df):
            print(f"Index {index} out of range")
            continue

        x = df['left'].iloc[index]
        y = df['right'].iloc[index]
        pos = df['pos'].iloc[index]

        x = int(x)
        y = int(y)

        # Only plot if both x and y are at least 15 or both are 0
        #if (x >= 15 and y >= 15) or (x == 0 and y == 0):
        if pos is not None:
            # Place the pie chart at the midpoint of the line
            inset_ax = ax.inset_axes([pos.x, pos.y, size, size], transform=ax.transData)
            pie_wedges, texts, autotexts = inset_ax.pie([x, y], labels=[' ', ' '], autopct='%1.1f%%', colors=colors2, textprops={'fontsize': font_size})

            # Set the alpha value for the pie chart wedges
            for wedge in pie_wedges:
                wedge.set_alpha(alpha)

Version 1 output

def plot_pie_charts_v1_output(ax, indexes, size=0.3, font_size=10, alpha=0.5):
    for index in indexes:
        if index < 0 or index >= len(df):
            print(f"Index {index} out of range")
            continue

        x = df['left'].iloc[index]
        y = df['right'].iloc[index]
        pos = df['pos'].iloc[index]

        x = int(x)
        y = int(y)

        if pos is not None:
            # Place the pie chart at the midpoint of the line
            inset_ax = ax.inset_axes([pos.x, pos.y, size, size], transform=ax.transData)
            pie_wedges, texts, autotexts = inset_ax.pie([x, y], labels=[' ', ' '], autopct='%1.1f%%', colors=colors2, textprops={'fontsize': font_size})

            # Set the alpha value for the pie chart wedges
            for wedge in pie_wedges:
                wedge.set_alpha(alpha)

    fig.savefig('Example7_Output_2.pdf')

Version 2 interactive

def plot_pie_charts_v2(ax, indexes, size=0.3, font_size=10, alpha=0.5):
    for index in indexes:
        if index < 0 or index >= len(df):
            print(f"Index {index} out of range")
            continue

        x = df['left'].iloc[index]
        y = df['right'].iloc[index]
        pos = df['pos'].iloc[index]

        x = int(x)
        y = int(y)
        circle = df['circle'].iloc[index]
        helper_line = df['helper_line'].iloc[index]

        if circle is not None:
            # Get the centroid of the circle to place the pie chart
            centroid = circle.centroid

            # Place the pie chart at the centroid of the circle
            inset_ax = ax.inset_axes([centroid.x, centroid.y, size, size], transform=ax.transData)
            pie_wedges, texts, autotexts = inset_ax.pie([x, y], labels=[' ', ' '], autopct='%1.1f%%', colors=colors2, textprops={'fontsize': font_size})

            # Set the alpha value for the pie chart wedges
            for wedge in pie_wedges:
                wedge.set_alpha(alpha)

            # Plot the helper line from the midpoint to the pie chart
            if helper_line is not None:
                ax.plot(*helper_line.xy, 'k--', transform=ax.transData)
    # Plot all offset points
    offset_points = df['offset_point'].dropna()
    ax.scatter([point.x for point in offset_points], [point.y for point in offset_points], color='red', label='Offset Points')

Version 2 output

def plot_pie_charts_v2_output(ax, indexes, size=0.3, font_size=10, alpha=0.5):
    for index in indexes:
        if index < 0 or index >= len(df):
            print(f"Index {index} out of range")
            continue

        x = df['left'].iloc[index]
        y = df['right'].iloc[index]
        pos = df['pos'].iloc[index]

        x = int(x)
        y = int(y)
        circle = df['circle'].iloc[index]
        helper_line = df['helper_line'].iloc[index]

        if circle is not None:
            # Get the centroid of the circle to place the pie chart
            centroid = circle.centroid

            # Place the pie chart at the centroid of the circle
            inset_ax = ax.inset_axes([centroid.x, centroid.y, size, size], transform=ax.transData)
            pie_wedges, texts, autotexts = inset_ax.pie([x, y], labels=[' ', ' '], autopct='%1.1f%%', colors=colors2, textprops={'fontsize': font_size})

            # Set the alpha value for the pie chart wedges
            for wedge in pie_wedges:
                wedge.set_alpha(alpha)

            # Plot the helper line from the midpoint to the pie chart
            if helper_line is not None:
                ax.plot(*helper_line.xy, 'k--', transform=ax.transData)

    fig.savefig('Example7_Output_3.pdf')

Plotting

Version 1 interactive

#count = len(df[((df['left'] >= 15) & (df['right'] >= 15)) | ((df['left'] == 0) & (df['right'] == 0))])

def interactive_plot(**kwargs):
    fig, ax = plt.subplots(figsize=Rm.DINA3q)
    ncd.plot_src_spectrum(ax, dfROHR, 'srcvector_plot', colors)

    for i in range(21):
        if kwargs[f'Index_{i}']:
            plot_pie_charts_v1(ax, [i], size=750, alpha=0.5)

    plt.show()

checkboxes = {f'Index_{i}': widgets.Checkbox(value=False, description=f'{i}: {df["left"].iloc[i]}/{df["right"].iloc[i]}') for i in range(21)}

<Figure size 640x480 with 0 Axes>

<Figure size 640x480 with 0 Axes>

widgets_interact = widgets.interactive(interactive_plot, **checkboxes)

<Figure size 640x480 with 0 Axes>

<Figure size 640x480 with 0 Axes>

def update_plot(change):
    plt.clf()
    interactive_plot(**{key: checkboxes[key].value for key in checkboxes})

for key in checkboxes:
    checkboxes[key].observe(update_plot, names='value')

display(widgets_interact)

The depiction of the interactive Widget plot does not work in the documentation, because a python kernel must run it. It is identical to the output plot apart from the possibilty to toggle a total of 20 pie charts individually. To interact with the plot, download and run the script.

Version 1 output

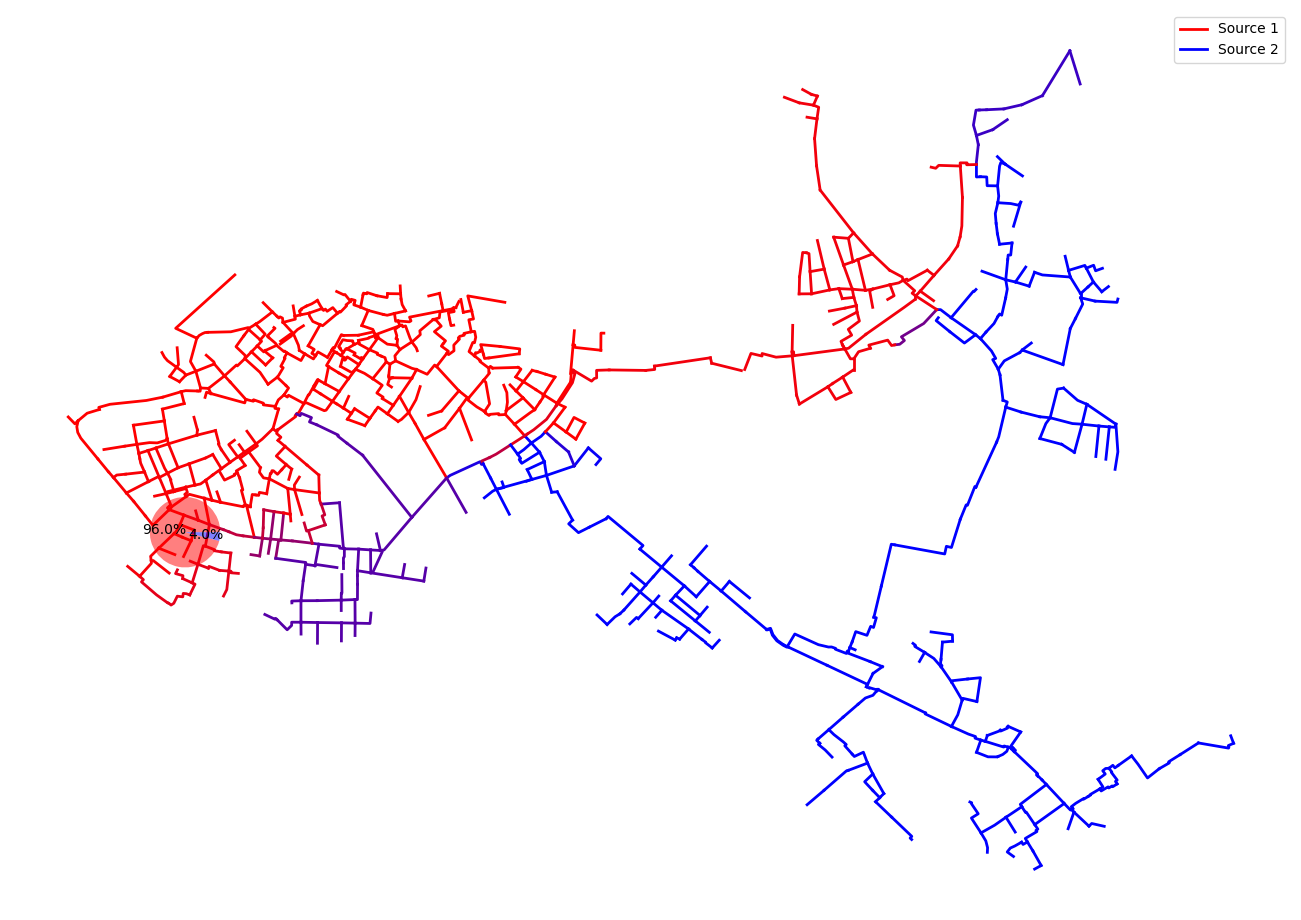

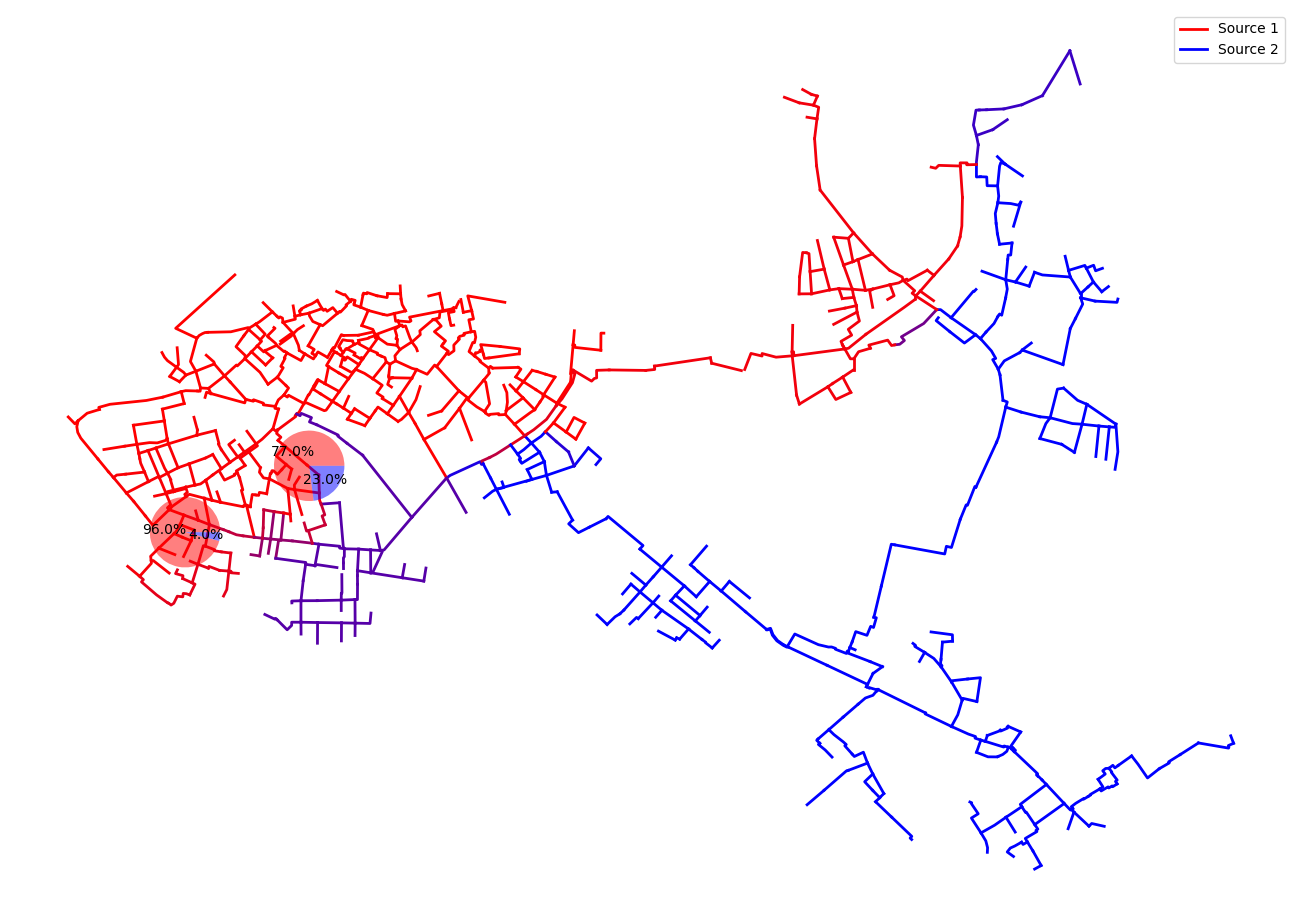

indexes_to_plot =  [0, 5, 6, 9, 13, 20]

fig, ax = plt.subplots(figsize=Rm.DINA3q)
ncd.plot_src_spectrum(ax, dfROHR,'srcvector_plot', colors)
plot_pie_charts_v1_output(ax, indexes_to_plot, size=750, alpha=0.5)
plt.show()

Version 2 interactive

def interactive_plot_2(**kwargs):
    fig, ax = plt.subplots(figsize=Rm.DINA3q)
    ncd.plot_src_spectrum(ax, dfROHR, 'srcvector_plot', colors)

    for i in range(len(df)):
        if kwargs.get(f'Index_{i}', False):
            plot_pie_charts_v2(ax, [i], size=750)

    plt.show()

# Create checkboxes with proportions and index as descriptions
checkboxes_2 = {f'Index_{i}': widgets.Checkbox(value=False, description=f'{i}: {df["left"].iloc[i]}/{df["right"].iloc[i]}') for i in range(21)}

widgets_interact_2 = widgets.interactive(interactive_plot_2, **checkboxes_2)

def update_plot_2(change):
    plt.clf()
    interactive_plot_2(**{key: checkboxes_2[key].value for key in checkboxes_2})

for key in checkboxes_2:
    checkboxes_2[key].observe(update_plot_2, names='value')

display(widgets_interact_2)

The depiction of the interactive Widget plot does not work in the documentation, because a python kernel must run it. It is identical to the output plot apart from the possibilty to toggle a total of 20 pie charts individually. To interact with the plot, download and run the script.

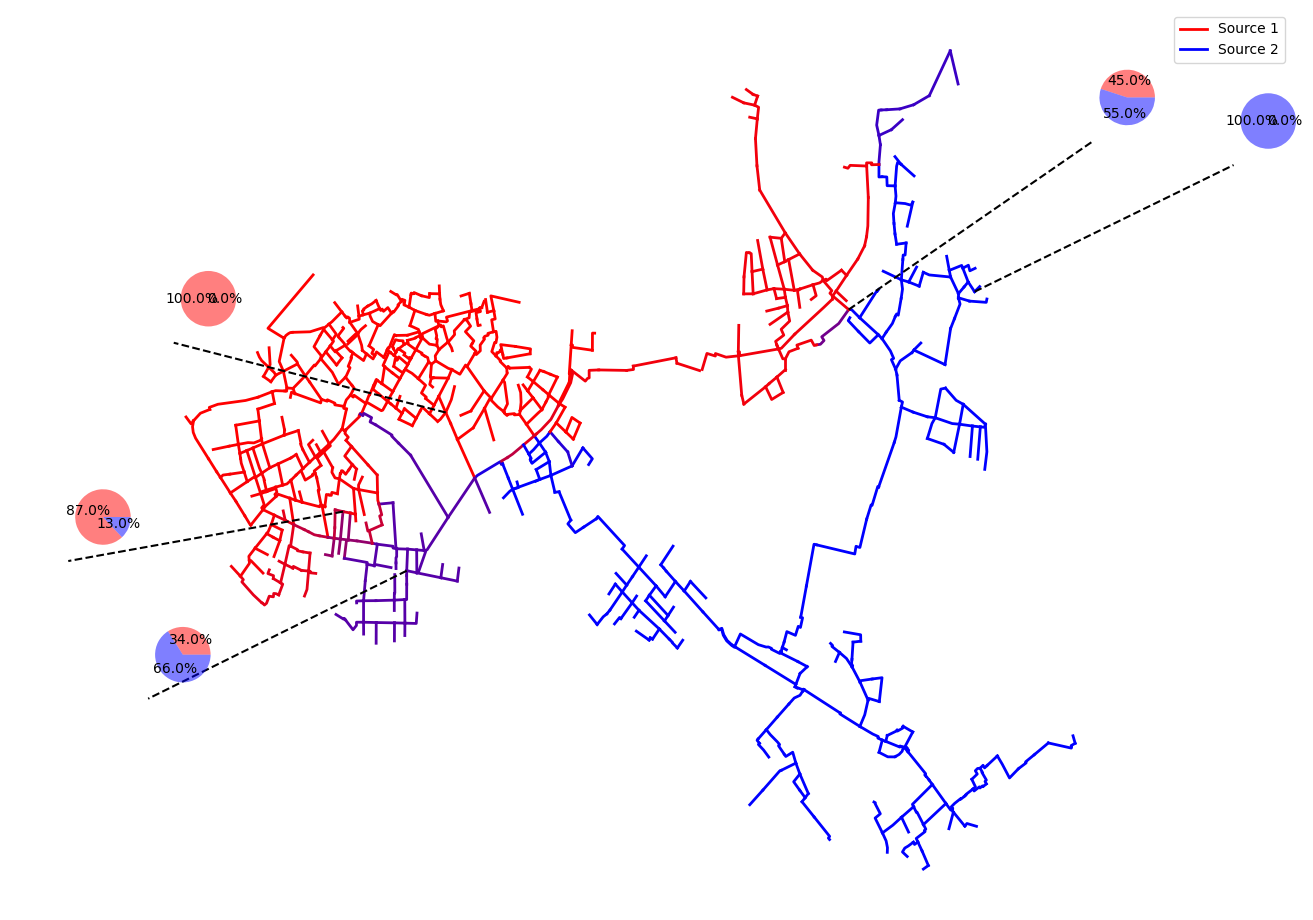

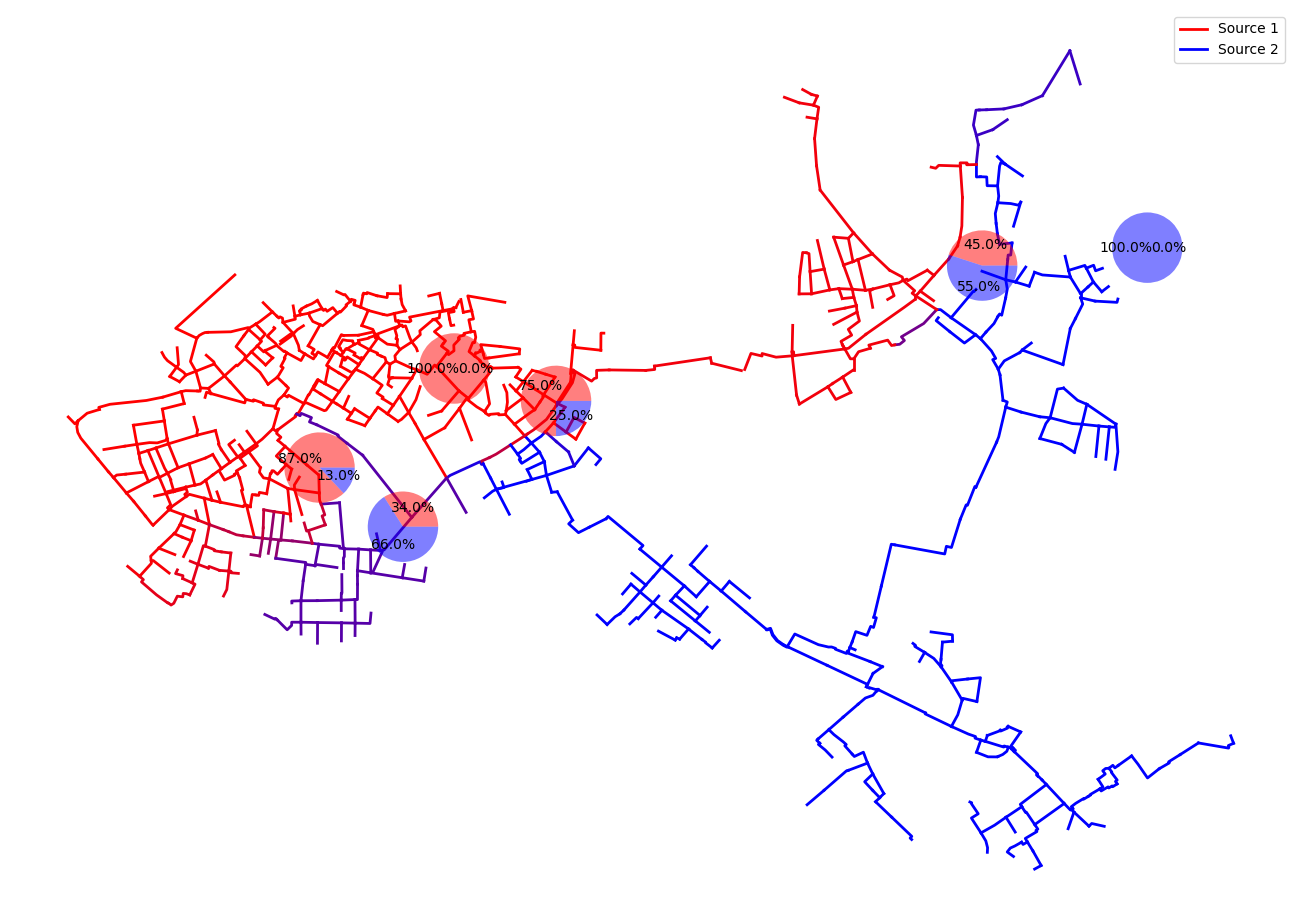

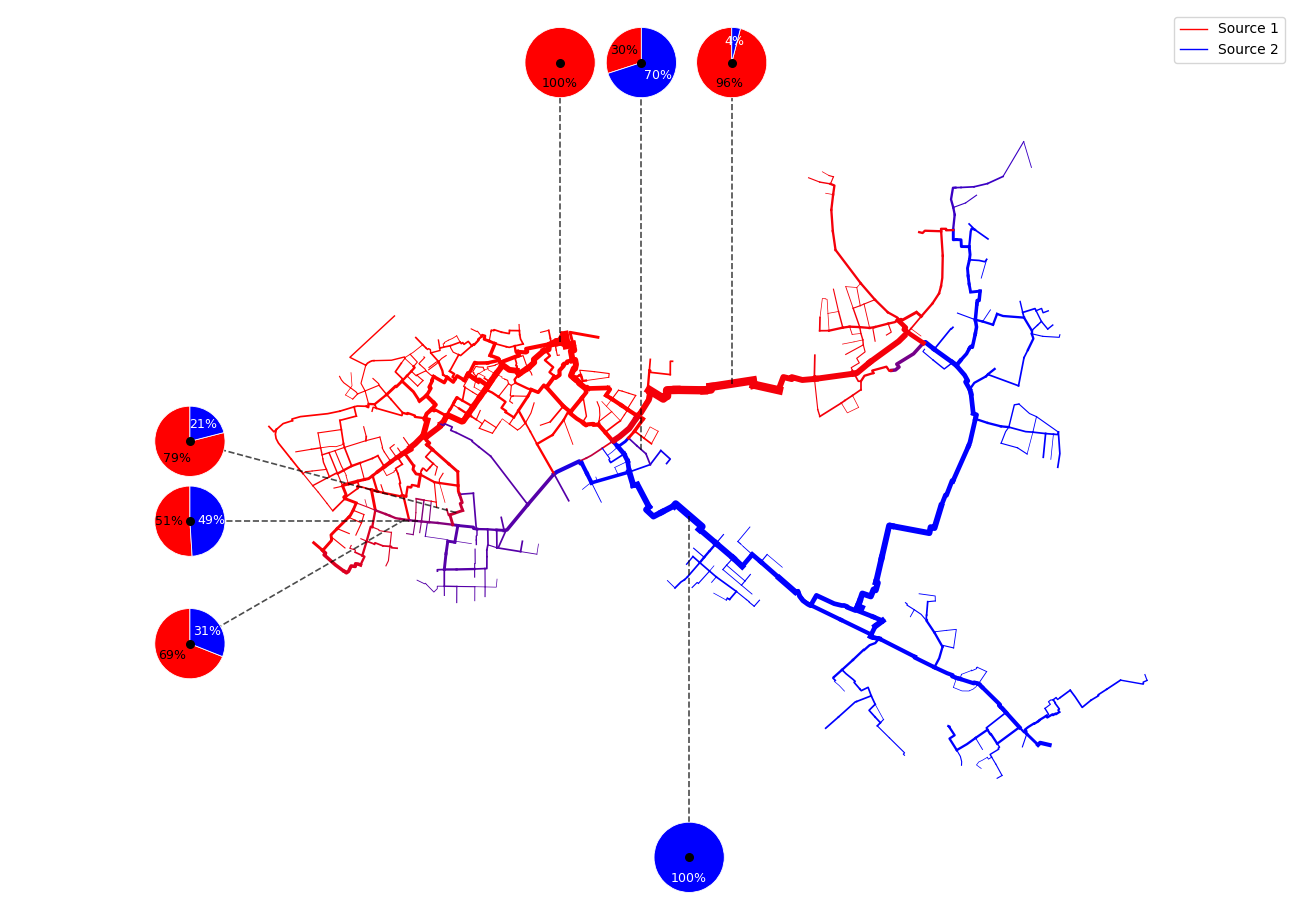

Version 2 output

indexes_to_plot = [0, 5, 6, 13, 20]

fig, ax = plt.subplots(figsize=Rm.DINA3q)
ncd.plot_src_spectrum(ax, dfROHR,'srcvector_plot', colors)
plot_pie_charts_v2_output(ax, indexes_to_plot, size=750, alpha=0.5)
plt.show()
