Tutorial 72: WORK IN PROGRESS: Longitudinal Sections
This example demonstrates how to …
SIR 3S Installation
[1]:
SIR3S_SIRGRAF_DIR = r"C:\3S\SIR 3S\SirGraf-90-15-00-20x64_Quebec-Upd1" #change to local path
Imports
[2]:
from sir3stoolkit.core import wrapper
[3]:
from sir3stoolkit.mantle import mantle
The wrapper package has to be initialized with reference to a SIR 3S (SirGraf) installation.
[4]:
wrapper.Initialize_Toolkit(SIR3S_SIRGRAF_DIR)
Additional imports
[5]:
import os
…
Initialization
[6]:
s3s = mantle.SIR3S_Model_Mantle()
Initialization complete
Open Model
[7]:
dbFilePath=r"C:\Users\aUsername\3S\PT3S\PT3S\Examples\Example3.db3"
[8]:
s3s.OpenModel(dbName=dbFilePath,
providerType=s3s.ProviderTypes.SQLite,
Mid="M-1-0-1",
saveCurrentlyOpenModel=False,
namedInstance="",
userID="",
password="")
Model is open for further operation
Get Data
[9]:
s3s.ExecCalculation(True)
Could not start Model Calculation: SirCalc Path 'C:\3S Consult\SIR3S-90-15-00-19-Quebec\SirCalc-90-15-02-20_Quebec\SirCalc.exe' not found.
[10]:
dfs = s3s.generate_longitudinal_section_dataframes()
[2026-01-18 22:35:34,457] INFO in sir3stoolkit.mantle.dataframes: [model_data] Generating model_data dataframe for element type: ObjectTypes.AGSN_HydraulicProfile
[2026-01-18 22:35:34,469] INFO in sir3stoolkit.mantle.dataframes: [model_data] Retrieved 3 element(s) of element type ObjectTypes.AGSN_HydraulicProfile.
[2026-01-18 22:35:34,495] INFO in sir3stoolkit.mantle.dataframes: [Resolving model_data Properties] No properties given → using ALL model_data properties for ObjectTypes.AGSN_HydraulicProfile.
[2026-01-18 22:35:34,496] INFO in sir3stoolkit.mantle.dataframes: [Resolving model_data Properties] Using 9 model_data properties.
[2026-01-18 22:35:34,497] INFO in sir3stoolkit.mantle.dataframes: [model_data] Retrieving model_data properties ['Name', 'Lfdnr', 'Aktiv', 'AllNodesAndLinks', 'ObjsString', 'MainWay', 'Tk', 'Pk', 'InVariant']...
[2026-01-18 22:35:34,576] INFO in sir3stoolkit.mantle.dataframes: [model_data] Done. Shape: (3, 10)
[2026-01-18 22:35:34,583] INFO in sir3stoolkit.mantle.dataframes: Retrieving Hydraulic Profile with Lfdnr: 1.
[2026-01-18 22:35:34,610] INFO in sir3stoolkit.mantle.dataframes: [generate_element_dataframe] Generating df for element type: ObjectTypes.Pipe ...
[2026-01-18 22:35:34,612] DEBUG in sir3stoolkit.mantle.dataframes: [generate_element_dataframe] Generating df_model_data for element type: ObjectTypes.Pipe ...
[2026-01-18 22:35:34,613] INFO in sir3stoolkit.mantle.dataframes: [model_data] Generating model_data dataframe for element type: ObjectTypes.Pipe
[2026-01-18 22:35:34,619] INFO in sir3stoolkit.mantle.dataframes: [Resolving tks] Retrieved 524 element(s) of element type ObjectTypes.Pipe.
[2026-01-18 22:35:34,622] INFO in sir3stoolkit.mantle.dataframes: [Resolving tks] 44 tks remain after filtering for given tks.
[2026-01-18 22:35:34,625] INFO in sir3stoolkit.mantle.dataframes: [Resolving model_data Properties] No properties given → using ALL model_data properties for ObjectTypes.Pipe.
[2026-01-18 22:35:34,629] INFO in sir3stoolkit.mantle.dataframes: [Resolving model_data Properties] Using 46 model_data properties.
[2026-01-18 22:35:34,631] INFO in sir3stoolkit.mantle.dataframes: [model_data] Retrieving model_data properties ['Name', 'FkdtroRowd', 'Fkltgr', 'Fkstrasse', 'L', 'Lzu', 'Rau', 'Jlambs', 'Lambda0', 'Zein', 'Zaus', 'Zuml', 'Asoll', 'Indschall', 'Baujahr', 'Hal', 'Fkcont', 'Fk2lrohr', 'Beschreibung', 'Idreferenz', 'Iplanung', 'Kvr', 'LineWidthMM', 'DottedLine', 'DN', 'Di', 'KvrKlartext', 'HasClosedNSCHs', 'Tk', 'Pk', 'InVariant', 'Xkor', 'Ykor', 'GeometriesDiffer', 'bz.Fk', 'bz.Qsvb', 'bz.Irtrenn', 'bz.Leckstatus', 'bz.Leckstart', 'bz.Leckend', 'bz.Leckort', 'bz.Leckmenge', 'bz.Imptnz', 'bz.Zvlimptnz', 'bz.Kantenzv', 'bz.ITrennWithNSCH'], geometry, end nodes...
[2026-01-18 22:35:35,698] INFO in sir3stoolkit.mantle.dataframes: [model_data] 2 non-empty end node columns were created.
[2026-01-18 22:35:35,900] INFO in sir3stoolkit.mantle.dataframes: [model_data] Transforming DataFrame to GeoDataFrame successful with EPSG: 25832
[2026-01-18 22:35:35,900] INFO in sir3stoolkit.mantle.dataframes: [model_data] Done. Shape: (44, 50)
[2026-01-18 22:35:35,905] DEBUG in sir3stoolkit.mantle.dataframes: [generate_element_dataframe] Generating df_results for element type: ObjectTypes.Pipe ...
[2026-01-18 22:35:35,912] INFO in sir3stoolkit.mantle.dataframes: [results] Generating results dataframe for element type: ObjectTypes.Pipe
[2026-01-18 22:35:35,928] WARNING in sir3stoolkit.mantle.dataframes: [Resolving Timestamps] Timestamp is not valid (SIR3S_Model.GetTimeStamps()). It will be excluded.
[2026-01-18 22:35:35,930] INFO in sir3stoolkit.mantle.dataframes: [Resolving Timestamps] 0 valid timestamp(s) will be used.
[2026-01-18 22:35:35,930] WARNING in sir3stoolkit.mantle.dataframes: [results] No valid timestamps. Returning empty dataframe.
[2026-01-18 22:35:35,934] DEBUG in sir3stoolkit.mantle.dataframes: [generate_element_dataframe] Merging df_model_data with df_results for element type: ObjectTypes.Pipe ...
[2026-01-18 22:35:35,935] ERROR in sir3stoolkit.mantle.dataframes: [generate_element_dataframe] Error Generating df for element type: ObjectTypes.Pipe: Too many levels: Index has only 1 level, not 2
ERROR:root:Error retrieving Hydraulic Profile with Lfdnr: 1.
Error :
Error :
[11]:
df=dfs[0]
---------------------------------------------------------------------------
IndexError Traceback (most recent call last)
Cell In[11], line 1
----> 1 df=dfs[0]
IndexError: list index out of range
[ ]:
df_vec=s3s.add_interior_points_as_multiindex(df)
[ ]:
df_vec[("l_sum", -1)]
0 15.351701
1 27.860648
2 34.126153
3 48.533695
4 62.049538
5 79.324254
6 113.666420
7 149.752335
8 213.782486
9 265.851250
10 315.314808
11 325.177948
12 339.208532
13 371.733842
14 378.362803
15 448.136789
16 463.003848
17 562.262027
18 620.887233
19 708.601420
20 735.670985
21 740.545722
22 743.968120
23 751.727923
24 758.287896
25 777.158410
26 795.942267
27 828.020167
28 841.297316
29 911.066336
30 947.495684
31 1004.713492
32 1045.708308
33 1052.541387
34 1060.034488
35 1068.355962
36 1151.294797
37 1155.836302
38 1161.025165
39 1164.982003
40 1186.143680
41 1212.402452
42 1240.748040
43 1281.552541
Name: (l_sum, -1), dtype: float64

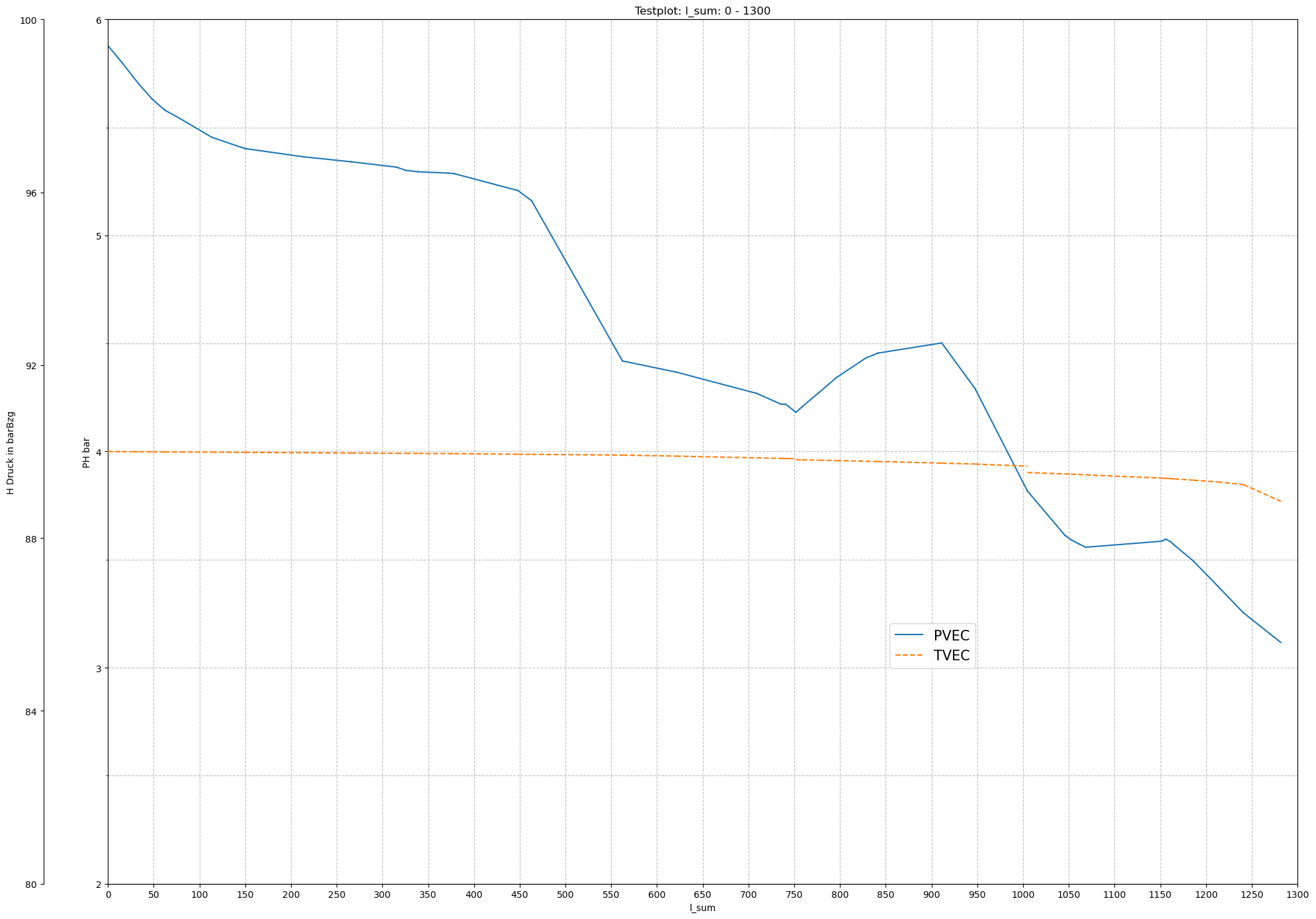

Plot
[ ]:
from __future__ import annotations
from collections import OrderedDict
from typing import Any
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.ticker as mticker
def plot_time_curves(
df: pd.DataFrame,
start=None,
end=None,
properties=None,
axis_labels=None,
ylims=None,
tks_per_property=None, # kept for signature compatibility (unused in new logic)
y_label_ticks=None,
y_grid_ticks=None,
x_label_ticks=None,
x_grid_ticks=None,
figsize=(20, 14),
axis_offset=60,
linestyles=None,
legend=True,
legend_fontsize=8,
legend_loc="upper left",
legend_coords=(0.67, 0.33),
legend_in_figure=True,
missing="skip",
normalize=str.upper,
aliases=None,
title_prefix="",
show_title=True,
rotate_xticks=0,
grid=True,
grid_style="--",
grid_alpha=0.3,
logger=None,
):
"""
Plot multiple properties along cumulative length.
Expected columns:
- ("l_sum", -1): cumulative segment end length
- ("VAV", -1): direction; negative reverses sample order within the segment
- For each property P in `properties`: columns (P, k) with k=0..N (level1 numeric),
and optionally (P, -1) metadata (ignored).
Segment definition:
row i spans x in [l_sum[i-1], l_sum[i]] with l_sum[-1] := 0.
For each row + property:
- take samples from k=0 up to last non-NaN (trailing NaNs)
- map to equidistant x over the segment
- reverse samples if VAV < 0
"""
# -------------------------------------------------------------------------
# Logging helpers
# -------------------------------------------------------------------------
def _log_info(msg: str) -> None:
if logger is not None:
logger.info(f"[time curves] {msg}")
def _log_warn(msg: str) -> None:
if logger is not None and hasattr(logger, "warning"):
logger.warning(f"[time curves] {msg}")
elif logger is not None:
logger.info(f"[time curves] {msg}")
# -------------------------------------------------------------------------
# Input validation
# -------------------------------------------------------------------------
if not isinstance(df.columns, pd.MultiIndex) or df.columns.nlevels != 2:
raise ValueError("DataFrame must have 2-level MultiIndex columns (level0=property, level1=sample index).")
df = df.copy()
lvl0_name = df.columns.names[0] or "property"
lvl1_name = df.columns.names[1] or "sample"
def norm_prop(s: Any) -> str:
s2 = normalize(str(s)).strip()
if aliases:
s2 = aliases.get(s2, s2)
return s2
lvl0_raw = df.columns.get_level_values(0).astype(str)
lvl0_norm = lvl0_raw.map(norm_prop)
lvl1_vals = df.columns.get_level_values(1)
def _is_minus_one(x: Any) -> bool:
return (x == -1) or (str(x).strip() == "-1")
# Find special columns ("l_sum",-1), ("VAV",-1)
lsum_key_norm = norm_prop("l_sum")
vav_key_norm = norm_prop("VAV")
lsum_mask = (lvl0_norm == lsum_key_norm) & pd.Index(lvl1_vals).map(_is_minus_one)
vav_mask = (lvl0_norm == vav_key_norm) & pd.Index(lvl1_vals).map(_is_minus_one)
lvl1_idx = pd.Index(lvl1_vals)
lsum_mask = ((lvl0_norm == lsum_key_norm) & lvl1_idx.map(_is_minus_one)).to_numpy()
vav_mask = ((lvl0_norm == vav_key_norm) & lvl1_idx.map(_is_minus_one)).to_numpy()
if np.count_nonzero(lsum_mask) != 1:
raise ValueError(f"Expected exactly one ('l_sum', -1) column, found {np.count_nonzero(lsum_mask)}.")
if np.count_nonzero(vav_mask) != 1:
raise ValueError(f"Expected exactly one ('VAV', -1) column, found {np.count_nonzero(vav_mask)}.")
lsum_col = df.columns[lsum_mask][0]
vav_col = df.columns[vav_mask][0]
# Ensure l_sum numeric and sort by it
lsum_series = pd.to_numeric(df[lsum_col], errors="coerce")
if lsum_series.isna().any():
bad = df.index[lsum_series.isna()].tolist()[:10]
raise ValueError(f"Some l_sum values are NaN/non-numeric. Example rows: {bad}")
df = df.loc[lsum_series.sort_values().index]
lsum = lsum_series.loc[df.index].to_numpy(dtype=float)
# Segment starts/ends
seg_end = lsum
seg_start = np.concatenate(([0.0], seg_end[:-1]))
# Interpret start/end as length bounds
start_l = float(start) if start is not None else 0.0
end_l = float(end) if end is not None else float(seg_end.max())
if start_l > end_l:
raise ValueError("start must be <= end (interpreted as length range).")
overlaps = (seg_end >= start_l) & (seg_start <= end_l)
if not overlaps.any():
raise ValueError("No segments overlap the requested start/end length window.")
# -------------------------------------------------------------------------
# Determine properties to plot
# -------------------------------------------------------------------------
special_norm = {lsum_key_norm, vav_key_norm}
available_props = sorted(set(p for p in lvl0_norm.unique().tolist() if p not in special_norm))
if properties is None:
used_properties = available_props
else:
used_properties = [norm_prop(p) for p in properties]
n_props = len(used_properties)
if n_props == 0:
raise ValueError("No properties to plot.")
# -------------------------------------------------------------------------
# Axis labels and limits
# -------------------------------------------------------------------------
if axis_labels is None:
used_axis_labels = [f"{lvl0_name}={p}" for p in used_properties]
else:
if len(axis_labels) != n_props:
raise ValueError("axis_labels must have same length as properties.")
used_axis_labels = list(axis_labels)
if ylims is not None:
if len(ylims) != n_props:
raise ValueError("ylims must have same length as properties (or be None).")
for lim in ylims:
if lim is not None and (not isinstance(lim, (tuple, list)) or len(lim) != 2):
raise ValueError("Each ylims entry must be (ymin, ymax) or None.")
# -------------------------------------------------------------------------
# Tick validation
# -------------------------------------------------------------------------
if y_label_ticks is not None:
if len(y_label_ticks) != n_props:
raise ValueError("y_label_ticks must have same length as properties (or be None).")
if any((not isinstance(n, int) or n < 2) for n in y_label_ticks):
raise ValueError("Each y_label_ticks entry must be an int >= 2.")
if y_grid_ticks is not None and (not isinstance(y_grid_ticks, int) or y_grid_ticks < 2):
raise ValueError("y_grid_ticks must be an int >= 2 (or None).")
if x_label_ticks is not None and (not isinstance(x_label_ticks, int) or x_label_ticks < 2):
raise ValueError("x_label_ticks must be an int >= 2 (or None).")
if x_grid_ticks is not None and (not isinstance(x_grid_ticks, int) or x_grid_ticks < 2):
raise ValueError("x_grid_ticks must be an int >= 2 (or None).")
# -------------------------------------------------------------------------
# Linestyles and colors
# -------------------------------------------------------------------------
if linestyles is None:
linestyles = ["-", "--", ":", "-."]
prop_linestyle = {p: linestyles[i % len(linestyles)] for i, p in enumerate(used_properties)}
colors = plt.rcParams["axes.prop_cycle"].by_key().get("color", [])
if not colors:
colors = ["C0", "C1", "C2", "C3", "C4", "C5", "C6", "C7", "C8", "C9"]
prop_color = {p: colors[i % len(colors)] for i, p in enumerate(used_properties)}
# -------------------------------------------------------------------------
# Create figure and stacked left y-axes (unchanged styling)
# -------------------------------------------------------------------------
fig, ax0 = plt.subplots(figsize=figsize)
axes = [ax0]
for i in range(1, n_props):
ax = ax0.twinx()
ax.yaxis.set_label_position("left")
ax.yaxis.tick_left()
ax.spines["left"].set_position(("outward", axis_offset * i))
ax.spines["right"].set_visible(False)
axes.append(ax)
for ax in axes:
ax.set_xlim(start_l, end_l)
ax.margins(x=0)
ax.autoscale(enable=False, axis="x")
# X ticks
if x_label_ticks is not None:
major_xticks = np.linspace(start_l, end_l, x_label_ticks)
ax0.xaxis.set_major_locator(mticker.FixedLocator(major_xticks))
else:
ax0.xaxis.set_major_locator(mticker.AutoLocator())
if x_grid_ticks is not None:
minor_xticks = np.linspace(start_l, end_l, x_grid_ticks)
ax0.xaxis.set_minor_locator(mticker.FixedLocator(minor_xticks))
if rotate_xticks:
for lbl in ax0.get_xticklabels():
lbl.set_rotation(rotate_xticks)
lbl.set_ha("right")
# -------------------------------------------------------------------------
# Build property -> sorted sample columns (numeric level1 only)
# -------------------------------------------------------------------------
def _sample_index(x: Any) -> int:
# level1 expected to be int; allow numeric strings
try:
return int(x)
except Exception as e:
raise ValueError(f"Non-numeric sample index in level1: {x!r}. Expected 0..N.") from e
prop_to_sample_cols: dict[str, list[tuple[Any, Any]]] = {}
for p in used_properties:
mask_p = (lvl0_norm == p) & ~pd.Index(lvl1_vals).map(_is_minus_one)
cols = df.columns[mask_p].tolist()
if cols:
cols_sorted = sorted(cols, key=lambda c: _sample_index(c[1]))
prop_to_sample_cols[p] = cols_sorted
else:
prop_to_sample_cols[p] = []
# Direction series
vav = pd.to_numeric(df[vav_col], errors="coerce").to_numpy(dtype=float)
# -------------------------------------------------------------------------
# Plot segments
# -------------------------------------------------------------------------
all_lines = []
plotted_any_for_property = {p: False for p in used_properties}
labeled_property = {p: False for p in used_properties}
idx = df.index.to_numpy()
for i, row_idx in enumerate(idx):
if not overlaps[i]:
continue
x0 = float(seg_start[i])
x1 = float(seg_end[i])
if x1 <= x0:
continue
direction_negative = (vav[i] < 0)
for prop_idx, prop in enumerate(used_properties):
ax = axes[prop_idx]
cols = prop_to_sample_cols.get(prop, [])
if not cols:
continue
vals = df.loc[row_idx, cols]
notna = vals.notna().to_numpy()
if not notna.any():
continue
last = int(np.where(notna)[0].max())
vals_upto = vals.iloc[: last + 1].dropna().to_numpy(dtype=float)
m = len(vals_upto)
if m < 2:
# You said this won't happen; keep safe anyway.
continue
if direction_negative:
vals_upto = vals_upto[::-1]
x_seg = np.linspace(x0, x1, m)
label = prop if not labeled_property[prop] else "_nolegend_"
(ln,) = ax.plot(
x_seg,
vals_upto,
linestyle=prop_linestyle[prop],
color=prop_color[prop],
label=label,
)
labeled_property[prop] = True
all_lines.append(ln)
plotted_any_for_property[prop] = True
ax.set_ylabel(used_axis_labels[prop_idx])
if ylims is not None and ylims[prop_idx] is not None:
ax.set_ylim(*ylims[prop_idx])
# Missing property handling
missing_props = [p for p, ok in plotted_any_for_property.items() if not ok]
if missing_props:
msg = f"Requested properties produced no plotted lines (missing or all-NaN): {missing_props}"
if missing == "error":
raise ValueError(msg)
elif missing == "warn":
_log_warn(msg)
# Y ticks and y-grid ticks
for prop_idx, ax in enumerate(axes):
if y_label_ticks is not None:
y0, y1 = ax.get_ylim()
ax.set_yticks(np.linspace(y0, y1, y_label_ticks[prop_idx]))
if y_grid_ticks is not None:
y0, y1 = ax0.get_ylim()
ax0.yaxis.set_minor_locator(mticker.FixedLocator(np.linspace(y0, y1, y_grid_ticks)))
# Labels, grid, title, legend
ax0.set_xlabel("l_sum")
ax0.set_axisbelow(True)
if grid:
ax0.grid(True, which="major", axis="both", linestyle=grid_style, alpha=grid_alpha)
if x_grid_ticks is not None:
ax0.grid(True, which="minor", axis="x", linestyle=grid_style, alpha=grid_alpha)
if y_grid_ticks is not None:
ax0.grid(True, which="minor", axis="y", linestyle=grid_style, alpha=grid_alpha)
if show_title:
ax0.set_title(f"{title_prefix}l_sum: {start_l:g} - {end_l:g}")
if legend:
by_label = OrderedDict()
for ln in all_lines:
lab = ln.get_label()
if lab and lab != "_nolegend_" and lab not in by_label:
by_label[lab] = ln
handles = list(by_label.values())
labels = list(by_label.keys())
if handles:
if legend_in_figure:
fig.legend(handles, labels, loc=legend_loc, bbox_to_anchor=legend_coords, fontsize=legend_fontsize)
else:
ax0.legend(handles, labels, loc=legend_loc, bbox_to_anchor=legend_coords, fontsize=legend_fontsize)
fig.tight_layout()
_log_info(f"Plotted {len(all_lines)} segment-lines for {n_props} properties.")
return fig, axes, used_properties
[ ]:
s3s.GetResultProperties_from_elementType(s3s.ObjectTypes.Pipe,False)
['A',
'ACALC',
'CPI',
'CPK',
'DH',
'DP',
'DRAGRED',
'DRAKONZ',
'DSI',
'DSK',
'DTTR',
'DWVERL',
'DWVERLABS',
'ETAAV',
'FS',
'HR',
'HVEC',
'IAKTIV',
'IRTRENN',
'JV',
'JV2',
'LAMBDA',
'LECKEINAUS',
'LECKMENGE',
'LECKORT',
'LINEPACK',
'LINEPACKGEOM',
'LINEPACKRATE',
'MAINELEMENT',
'MAV',
'MI',
'MK',
'MKOND',
'MMAX_INST',
'MMIN_INST',
'MVEC',
'MVECMAX_INST',
'MVECMIN_INST',
'PAV',
'PDAMPF',
'PHR',
'PHVEC',
'PMAX',
'PMIN',
'PR',
'PVEC',
'PVECMAX_INST',
'PVECMIN_INST',
'QI2',
'QK2',
'QMAV',
'QMI',
'QMK',
'QMMAX_INST',
'QMMIN_INST',
'QMVEC',
'QSVB',
'RHOAV',
'RHOI',
'RHOK',
'RHOVEC',
'SVEC',
'TAV',
'TI',
'TK',
'TTRVEC',
'TVEC',
'TVECMAX_INST',
'TVECMIN_INST',
'VAV',
'VI',
'VK',
'VMAX_INST',
'VMIN_INST',
'VOLDA',
'WALTERI',
'WALTERK',
'WVL',
'ZAUS',
'ZEIN',
'ZHKNR',
'ZVEC']
[ ]:
df_vec.head(3)
| tk | Name | FkdtroRowd | Fkltgr | Fkstrasse | L | Lzu | Rau | Jlambs | Lambda0 | Zein | Zaus | Zuml | Asoll | Indschall | Baujahr | Hal | Fkcont | Fk2lrohr | Beschreibung | Idreferenz | Iplanung | Kvr | LineWidthMM | DottedLine | DN | Di | KvrKlartext | HasClosedNSCHs | Tk | Pk | InVariant | Xkor | Ykor | GeometriesDiffer | bz.Fk | bz.Qsvb | bz.Irtrenn | bz.Leckstatus | bz.Leckstart | bz.Leckend | bz.Leckort | bz.Leckmenge | bz.Imptnz | bz.Zvlimptnz | bz.Kantenzv | bz.ITrennWithNSCH | geometry | fkKI | fkKK | A | ACALC | CPI | CPK | DH | DP | DRAGRED | DRAKONZ | DSI | DSK | DTTR | DWVERL | DWVERLABS | ETAAV | FS | HR | IAKTIV | IRTRENN | JV | JV2 | LAMBDA | LECKEINAUS | LECKMENGE | LECKORT | LINEPACK | LINEPACKGEOM | LINEPACKRATE | MAINELEMENT | MAV | MI | MK | MKOND | MMAX_INST | MMIN_INST | MVEC | PAV | PDAMPF | PHR | PMAX | PMIN | PR | PVEC | PVECMAX_INST | PVECMIN_INST | QI2 | QK2 | QMAV | QMI | QMK | QMMAX_INST | QMMIN_INST | QSVB | RHOAV | RHOI | RHOK | RHOVEC | SVEC | TAV | TI | TK | TTRVEC | TVEC | VAV | VI | VK | VMAX_INST | VMIN_INST | VOLDA | WALTERI | WALTERK | WVL | ZAUS | ZEIN | ZHKNR | ZVEC | l_sum | AGSN_Lfdnr | AGSN_Name | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| interior points | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | -1 | -1 | -1 | -1 | -1 | -1 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | -1 | -1 | -1 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | -1 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | -1 | -1 | -1 |
| 0 | 5691533564979419761 | Rohr V-E0 V-K1683S | 4816511167455310973 | 4779752876656844188 | 5204829332281547346 | 15.351700 | 0 | 0.05 | 1 | 0 | 0 | 0 | 0 | 1000 | 0 | 0 | 5029128874972463118 | 5025945677694931826 | OSM: Knoten 476971238 -> Knoten 299394923; Län... | 39785520 | 0 | 1 | 0.005 | 0 | 350 | 345.6 | Vorlauf | 5691533564979419761 | 5691533564979419761 | False | 713619.921383 | 5.578219e+06 | False | 5691533564979419761 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | LINESTRING (713619.921 5578218.954, 713614.649... | 5398100694284104779 | 4825391580467484032 | 0.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 0.004844 | 43.12016 | 0.661968 | 99999.0 | 99999.0 | 99999.0 | 0.0 | 0.0 | 0.152727 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 79.74764 | 79.74764 | 79.74764 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 99999.0 | 0.701074 | 0.002345 | 99999.0 | 5.800678 | 99999.0 | 5.878785 | 5.839730 | 5.800680 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 5.878785 | 5.839730 | 5.800680 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 5.878785 | 5.839730 | 5.800680 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 99999.0 | 99999.0 | 287.0915 | 287.0915 | 287.0915 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 965.7 | 965.7012 | 965.7000 | 965.7006 | 965.7012 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 0 | 7.675850 | 15.35170 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 99999.0 | 89.99999 | 89.99802 | 0.000000 | 0.002422 | 0.004844 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 90.00000 | 89.99902 | 89.99802 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 0.880315 | 0.880315 | 0.880314 | 99999.0 | 99999.0 | 0.0 | 99999.0 | 99999.0 | 10082.88 | 99999.0 | 99999.0 | 99999.0 | 541.49 | 541.89 | 542.29 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 15.351701 | 1 | Längsschnitt | ||
| 1 | 5048873293262650113 | Rohr V-K1683S V-K1693S | 4816511167455310973 | 4779752876656844188 | 5204829332281547346 | 12.508950 | 0 | 0.05 | 1 | 0 | 0 | 0 | 0 | 1000 | 0 | 0 | 5029128874972463118 | 5216742060270992761 | OSM: Knoten 299394923 -> Knoten 4105649557; Lä... | 39785520 | 0 | 1 | 0.005 | 0 | 350 | 345.6 | Vorlauf | 5048873293262650113 | 5048873293262650113 | False | 713614.648712 | 5.578233e+06 | False | 5048873293262650113 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | LINESTRING (713614.649 5578233.372, 713614.465... | 4825391580467484032 | 5180617780362861593 | 0.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 0.003947 | 43.5808 | 0.54515 | 99999.0 | 99999.0 | 99999.0 | 0.0 | 0.0 | 0.152727 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 79.74764 | 79.74764 | 79.74764 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 99999.0 | 0.701027 | 0.00191 | 99999.0 | 5.732475 | 99999.0 | 5.800680 | 5.766575 | 5.732475 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 5.800680 | 5.766575 | 5.732475 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 5.800680 | 5.766575 | 5.732475 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 99999.0 | 99999.0 | 287.0915 | 287.0915 | 287.0915 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 965.7012 | 965.7021 | 965.7012 | 965.7017 | 965.7021 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 0 | 6.254474 | 12.50895 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 99999.0 | 89.99802 | 89.9964 | 0.004844 | 0.006818 | 0.008791 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 89.99802 | 89.99722 | 89.99640 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 0.880314 | 0.880314 | 0.880313 | 99999.0 | 99999.0 | 0.0 | 99999.0 | 99999.0 | 10081.81 | 99999.0 | 99999.0 | 99999.0 | 542.29 | 542.64 | 542.99 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 27.860648 | 1 | Längsschnitt | ||
| 2 | 5715081934973525403 | Rohr V-K2163S V-K1693S | 4816511167455310973 | 4779752876656844188 | 5204829332281547346 | 6.265505 | 0 | 0.05 | 1 | 0 | 0 | 0 | 0 | 1000 | 0 | 0 | 5029128874972463118 | 4919359344392474301 | OSM: Knoten 299394922 -> Knoten 4105649557; Lä... | 595926249 | 0 | 1 | 0.005 | 0 | 350 | 345.6 | Vorlauf | 5715081934973525403 | 5715081934973525403 | False | 713614.369043 | 5.578252e+06 | False | 5715081934973525403 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | LINESTRING (713614.369 5578252.145, 713614.465... | 4964920487041183545 | 5180617780362861593 | 0.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 0.001977 | 43.50407 | 0.272575 | 99999.0 | 99999.0 | 99999.0 | 0.0 | 0.0 | 0.152727 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | -79.74764 | -79.74764 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 99999.0 | 0.700995 | 0.000957 | 99999.0 | 5.699317 | 99999.0 | 5.699315 | 5.732475 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 5.699315 | 5.732475 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 5.699315 | 5.732475 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 99999.0 | 99999.0 | -287.0915 | -287.0915 | -287.0915 | 99999.0 | 99999.0 | 99999.0 | 99999.0 | 965.7026 | 965.7021 | 965.7026 | 965.7021 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 0 | 6.265505 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 99999.0 | 89.9956 | 89.9964 | 0.010768 | 0.008791 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 89.99561 | 89.99640 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | -0.880313 | -0.880313 | -0.880313 | 99999.0 | 99999.0 | 0.0 | 99999.0 | 99999.0 | -10080.92 | 99999.0 | 99999.0 | 99999.0 | 543.33 | 542.99 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | 34.126153 | 1 | Längsschnitt | ||
[ ]:
fig, axes, used = plot_time_curves(
df=df_vec,
# NEW: interpreted as length window on l_sum (floats), not timestamps
start=0.0,
end=1300, # <-- set this to the l_sum range you want
properties=["PVEC", "TVEC"],
axis_labels=["PH bar", "H Druck in barBzg"],
ylims=[(2, 6), (80, 100)],
# kept for compatibility but not used by the new logic (can be omitted)
# tks_per_property=...,
y_label_ticks=[5, 6],
y_grid_ticks=9,
x_label_ticks=27,
x_grid_ticks=14,
legend=True,
legend_in_figure=True,
legend_loc="upper left",
legend_coords=(0.67, 0.33),
legend_fontsize=15,
title_prefix="Testplot: ",
show_title=True,
axis_offset=70,
linestyles=["-", "--", ":"],
rotate_xticks=0,
grid=True,
grid_style="--",
grid_alpha=0.8,
missing="warn",
logger=None,
)
[ ]:
1/0
---------------------------------------------------------------------------
ZeroDivisionError Traceback (most recent call last)
Cell In[18], line 1
----> 1 1/0
ZeroDivisionError: division by zero
[ ]:
import matplotlib.pyplot as plt
[ ]:
import pandas as pd
[ ]:
def plot(dfAGSN=pd.DataFrame()
,dfAGSNRL=pd.DataFrame()
,PHCol='("PVEC", "0")'
,mlcCol='mlc_n'
,zKoorCol='ZKOR_n'
,barBzgCol='H_n'
,QMCol='QM'
,TCol='T_n'
,xCol='LSum'
):
fig, ax0 = plt.subplots(figsize=(20,11.9))
ax0.set_yticks(np.linspace(0, 10, 21))
ax0.yaxis.set_ticklabels([])
ax0.grid()
#PH
ax1 = ax0.twinx()
fyPH(ax1)
PH_SL=ax1.plot(dfAGSN[xCol], dfAGSN[PHCol], color='red', label='PH SL',ls='dotted')
PH_RL=ax1.plot(dfAGSNRL[xCol], dfAGSNRL[PHCol], color='blue', label='PH RL',ls='dotted')
#mlc
ax11 = ax0.twinx()
fymlc(ax11)
mlc_SL=ax11.plot(dfAGSN[xCol], dfAGSN[mlcCol], color='red', label='mlc SL')
mlc_RL=ax11.plot(dfAGSNRL[xCol], dfAGSNRL[mlcCol], color='blue', label='mlc RL')
z=ax11.plot(dfAGSN[xCol], dfAGSN[zKoorCol], color='black', label='z',ls='dashed',alpha=.5)
#barBZG
ax12 = ax0.twinx()
fybarBzg(ax12)
barB_SL=ax12.plot(dfAGSN[xCol], dfAGSN[barBzgCol], color='red', label='H SL',ls='dashdot')
barB_RL=ax12.plot(dfAGSNRL[xCol], dfAGSNRL[barBzgCol], color='blue', label='H RL',ls='dashdot')
"""
#M
ax2 = ax0.twinx()
fyM(ax2)
QM_SL=ax2.step(dfAGSN[xCol], dfAGSN[QMCol]*dfAGSN['direction'], color='orange', label='M SL')
QM_RL=ax2.step(dfAGSNRL[xCol], dfAGSNRL[QMCol]*dfAGSNRL['direction'], color='cyan', label='M RL',ls='--')
#T
ax3 = ax0.twinx()
fyT(ax3)
T_SL=ax3.plot(dfAGSN[xCol], dfAGSN[TCol], color='pink', label='T SL')
T_RL=ax3.plot(dfAGSNRL[xCol], dfAGSNRL[TCol], color='lavender', label='T RL')
"""
ax0.set_title('Longitudinal Section for ')#+dbFilename)
# added these three lines
lns = PH_SL+ PH_RL + mlc_SL+ mlc_RL + barB_SL+ barB_RL#+ QM_SL+ QM_RL + T_SL+ T_RL + z
labs = [l.get_label() for l in lns]
ax0.legend(lns, labs)#, loc=0)
plt.show()
[ ]:
def plot(
dfAGSN=df_vec,
xCol="l_sum",
PHCol=("PVEC", 0),
barBzgCol=("HVEC", 0)
):
fig, ax0 = plt.subplots(figsize=(20,11.9))
ax0.set_yticks(np.linspace(0, 10, 21))
ax0.yaxis.set_ticklabels([])
ax0.grid()
#PH
ax1 = ax0.twinx()
fyPH(ax1)
PH_SL=ax1.plot(dfAGSN[xCol], dfAGSN[PHCol], color='red', label='PH SL',ls='dotted')
#PH_RL=ax1.plot(dfAGSNRL[xCol], dfAGSNRL[PHCol], color='blue', label='PH RL',ls='dotted')
#barBZG
ax12 = ax0.twinx()
fybarBzg(ax12)
barB_SL=ax12.plot(dfAGSN[xCol], dfAGSN[barBzgCol], color='red', label='H SL',ls='dashdot')
ax0.set_title('Longitudinal Section for ')#+dbFilename)
# added these three lines
lns = PH_SL + barB_SL#+ PH_RL + mlc_SL+ mlc_RL + barB_SL+ barB_RL#+ QM_SL+ QM_RL + T_SL+ T_RL + z
labs = [l.get_label() for l in lns]
ax0.legend(lns, labs)#, loc=0)
plt.show()
[ ]:
plot(df_vec)
---------------------------------------------------------------------------
NameError Traceback (most recent call last)
Cell In[23], line 1
----> 1 plot(df_vec)
Cell In[22], line 9, in plot(dfAGSN, xCol, PHCol, barBzgCol)
1 def plot(
2 dfAGSN=df_vec,
3 xCol="l_sum",
4 PHCol=("PVEC", 0),
5 barBzgCol=("HVEC", 0)
6 ):

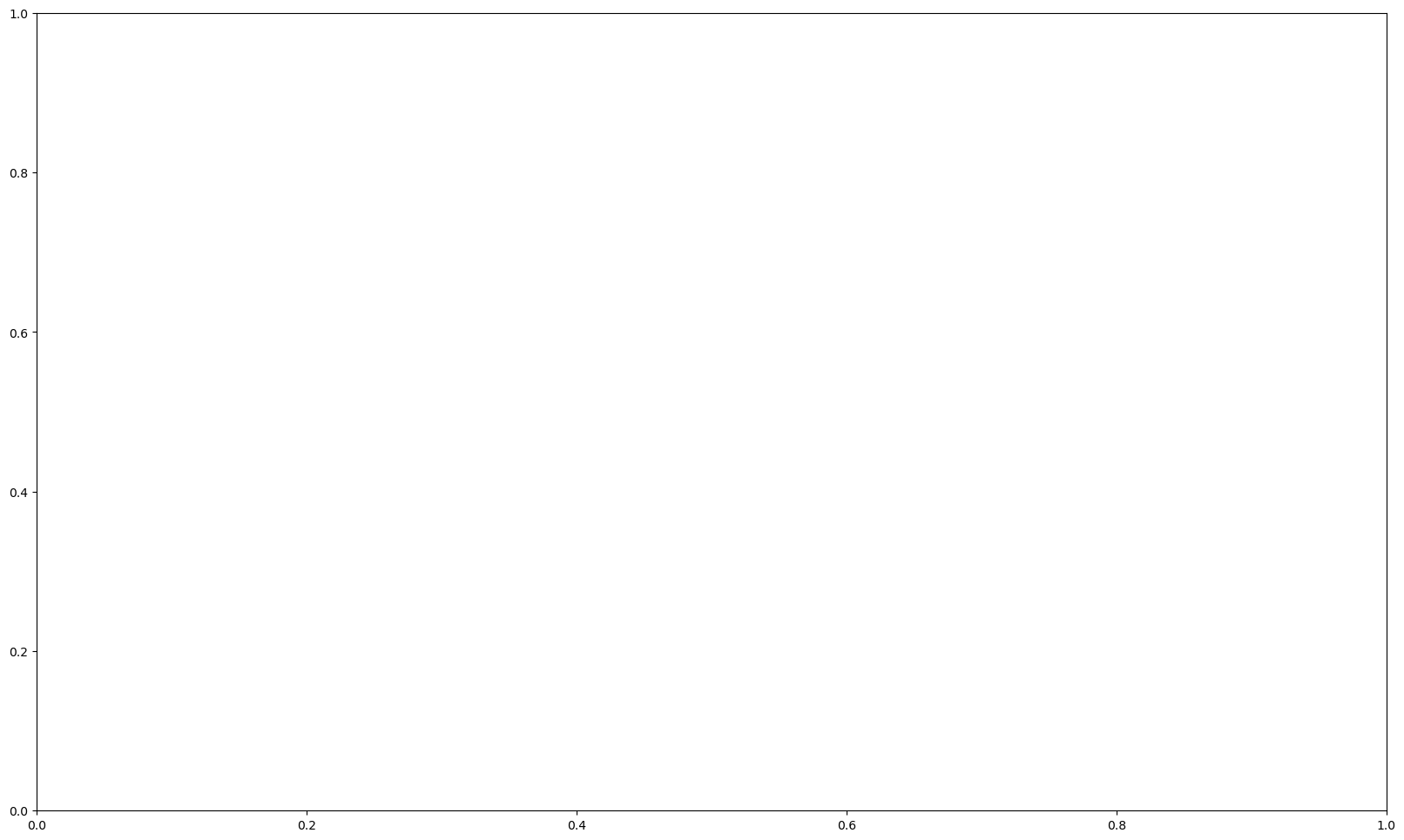

7 fig, ax0 = plt.subplots(figsize=(20,11.9))
----> 9 ax0.set_yticks(np.linspace(0, 10, 21))
10 ax0.yaxis.set_ticklabels([])
11 ax0.grid()
NameError: name 'np' is not defined
…
